Method Race Wheels 701 Trail Series, 17x8.5 with 5 on 5.5 Bolt Pattern – Bronze – MR70178555900

Method Race Wheels

Shop Method Race Wheels 17x8.5 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 701 Trail Series 17×8.5 wheel in Bronze, part number MRWMR70178555900
  • 5 on 5.5 bolt pattern, 108 center bore, 0 offset, 4.75 backspacing
  • One-piece cast 356 aluminum with T6 heat treatment
  • MR701 Bead Grip design for trail driving at lower air pressures
  • Universal fit, not tied to a specific vehicle

Description

Overview

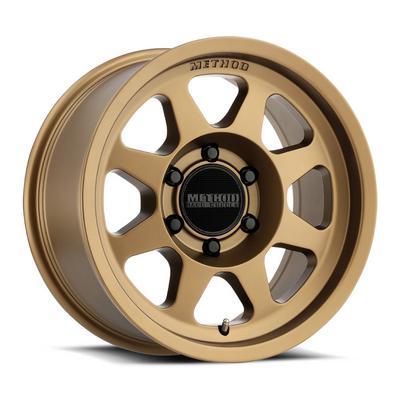

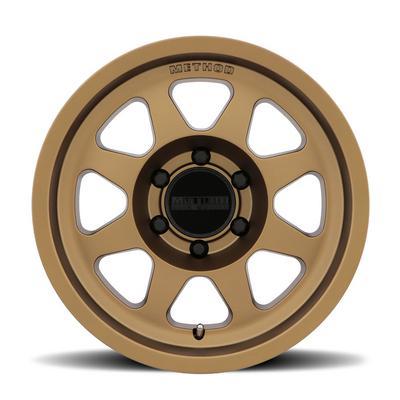

The Method Race Wheels 701 Trail Series 17×8.5 wheel in Bronze, part number MRWMR70178555900, is a 17-inch by 8.5-inch aluminum wheel built for off-road trail use. It has a 5 on 5.5 bolt pattern, a 108 center bore, 0 offset and 4.75 backspacing.

The wheel is cast as a single piece from 356 aluminum and T6 heat treated. The MR701 Bead Grip feature helps the tire bead stay gripped to the bead seat when pressure is reduced on rough ground. It is a universal fit wheel, so it is not built for one vehicle. Off-road owners can use the specifications below to check fit.

Key features

  • One-piece cast 356 aluminum with T6 heat treatment
  • Bead Grip technology for added tire bead grip at lower air pressures
  • Reinforced inner lip based on Method’s race wheel design

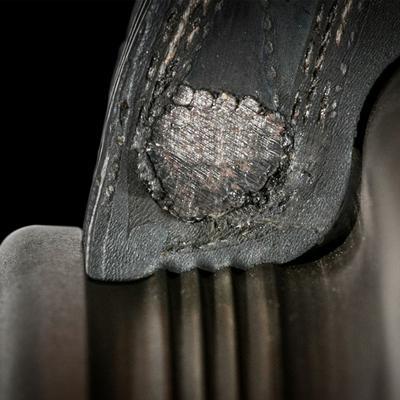

  • Safety hump on the inner and outer bead seat that helps stabilize the tire and prevent de-beading
  • Development included Finite Element Analysis and field testing.
  • No weight is available for this wheel, so compare weights directly if weight matters to your build.
  • Windowed style in Bronze finish

Hub-centric fit basics

A hub-centric wheel sits on the hub itself rather than on the lug studs alone. When the hub diameter is larger than the wheel center bore, a ring of the correct size closes the gap and carries load through the hub. Without that centering, the wheel can wobble and wear the studs over time.

Before mounting, clean the hub face and remove any rust or paint buildup that could keep the wheel from sitting flat. Tighten the lug nuts in a star pattern, then recheck them after the first drive. Cracked or stretched studs should be replaced before the wheel goes back into service.

  • Clean rust and debris from the hub face
  • Tighten lug nuts in a star pattern
  • Recheck torque after the first drive

Specifications

Brand Method Race Wheels
Part number MRWMR70178555900
Series 701 Trail Series, MR701 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 5 on 5.5
Center bore 108
Offset 0
Backspacing 4.75
Construction One-piece cast 356 aluminum, T6 heat treated
Style Windowed
Finish Bronze

Vehicle fitment

It is a universal fit wheel, so it is not written for a particular make, model or year. Fit comes down to matching the 5 on 5.5 bolt pattern, 108 center bore, 0 offset and 4.75 backspacing to your hub, with enough room for brakes and suspension.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Offset and backspacing control how far the wheel sits inside the fender, so measure caliper and suspension clearance with the planned tire before the first trail outing.

What’s included

Whether lug nuts, center caps or valve stems are included is unknown. Check the package contents against your installation before starting.

Not included: A tire must be purchased separately to mount on this wheel.

SKU: MRWMR70178555900 Categories: ,

Questions & Answers

What is part number MRWMR70178555900?

It is a Method Race Wheels 701 Trail Series 17x8.5 wheel in Bronze. It has a 5 on 5.5 bolt pattern, 108 center bore, 0 offset and 4.75 backspacing, and it is made from one-piece cast 356 aluminum.

Which vehicles does this Method wheel fit?

No vehicle is named. It is a universal fit wheel. Compare the 5 on 5.5 bolt pattern and 108 center bore with your hub, and check brake clearance before deciding.

How does the Bead Grip design work?

Method says Bead Grip engages the tire bead seat for increased grip when running lower air pressures. The reinforced inner lip and the safety hump on the bead seat are intended to keep the tire seated.

Are lug nuts included with the wheel?

Lug nuts, center caps and valve stems are not confirmed as included, so check the package contents first. Tires are not part of the wheel and must be bought separately.

Do I need a hub-centric ring with this wheel?

It depends on the hub diameter. If the hub is larger than the 108 center bore, a correctly sized ring is needed to center the wheel. Measure the hub before ordering so the right ring can be chosen.
