Overview

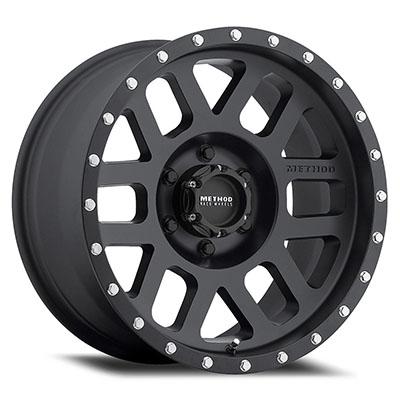

A 17×8.5 mesh wheel from Method Race Wheels, the MR306 Mesh is finished in matte black aluminum and set to an 8 on 6.5 bolt pattern, part number MRWMR30678580500. It measures 17 inches in diameter and 8.5 inches wide.
The MR306 face has an understated, timeless look. Polished 13mm bolts at the lip are fully replaceable. Confirm the center bore, offset and backspacing for this size before selecting it.
The MR306 line covers 16 to 20 inch sizes for most trucks, Jeeps and SUVs. The bolt pattern is the first match to make.
Key features
- Matte black finish on aluminum construction
- 17 inch diameter, 8.5 inch width
- 8 on 6.5 bolt pattern
- Polished 13mm lip bolts that can be replaced
- A black center cap comes with the wheel.
- Center bore, offset and backspacing not stated
Hub count and diameter checks
Less common bolt patterns offer fewer wheel options, so the hub check matters more than it would for a popular pattern. Count the studs and measure the spacing across the hub before anything else. If the vehicle’s original wheels used a different count, a wheel with this pattern will not seat and should not be forced onto the studs.
Plan ahead for future replacements. Keep the original wheel or record the pattern, center bore and offset in a safe place, since finding a matching replacement later may take longer. Inspect the lug nuts at the same time, and replace any that are rounded, cracked, or do not seat fully against the wheel.
- Stud count and spacing measured before purchase
- Original wheel specifications recorded
- Lug nut seats inspected for wear
- Hub diameter checked before mounting
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30678580500 |
| Style | MR306 Mesh |
| Finish | Black (matte) |
| Construction | Aluminum |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Bolt pattern | 8 on 6.5 |
| Lip bolts | 13mm decorative polished, replaceable |
Vehicle fitment
Only a Universal Fit entry exists for this wheel, so no make, model or year is attached. Compare the 8 on 6.5 pattern with your hub before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 8 on 6.5 pattern is less common, so verify the hub count and diameter before fitting. Confirm the lug nut seat style before mounting.
What’s included
The black center cap is part of the wheel package.
Not included: Tires are not part of this wheel and must be added separately.
