Method Race Wheels 701 Trail Series, 17x8.5 with 6 on 5.5 Bolt Pattern – Matte Black – MR70178560500

Method Race Wheels

$356.50In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 19, 2026 2:20 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 701 Trail Series 17×8.5 matte black wheel, part number MRWMR70178560500
  • 6 on 5.5 bolt pattern, 106 center bore, 0 offset, 4.75 backspacing
  • One-piece cast 356 aluminum with T6 heat treatment
  • Windowed style with a matte black finish
  • Universal fit; compare bolt pattern and hub before ordering.

Description

Overview

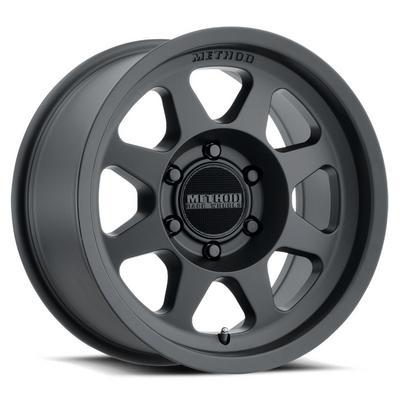

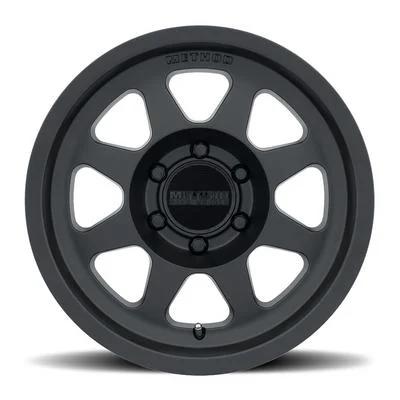

The matte black Method Race Wheels 701 Trail Series 17×8.5 wheel, part number MRWMR70178560500, uses a 6 on 5.5 bolt pattern. Its 106 center bore, zero offset and 4.75 backspacing describe how the wheel sits on the hub, and the windowed style is the main visual feature.

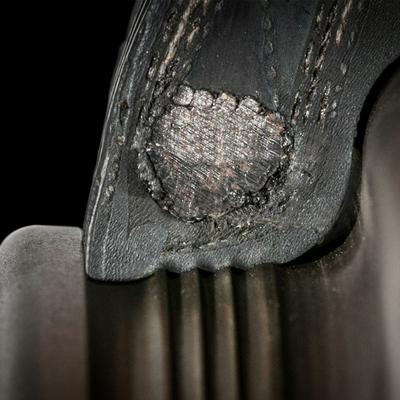

Construction is one-piece cast 356 aluminum with T6 heat treatment. The patent pending Bead Grip technology is designed to help the tire bead grip when pressures are lowered, backed by a reinforced inner lip from race wheel design and a safety hump on each bead seat that aids tire stability.

Key features

  • Matte black finish on a windowed design
  • One-piece cast 356 aluminum with T6 heat treatment
  • Bead Grip technology, patent pending, aimed at tire bead grip when pressures are lowered
  • Reinforced inner lip taken from race wheel design
  • Safety hump on the inner and outer bead seat to help stabilize the tire
  • The wheel was developed through finite element analysis and field tests.

Choosing a trail tire

A tire for this wheel should match the 17 inch diameter and 8.5 inch width. Tire width affects how the sidewall sits against the bead seat, and an oversized tire can change clearance at the inner fender and suspension. Consider the tread style and sidewall construction you need for rocks, mud or sand before buying.

Matte black finishes can show scratches and trail grime more readily than bronze, so plan on regular rinsing and a soft brush. Avoid harsh cleaners on the finish and the windows. Inspect the wheel after each tire change, paying attention to edges where a bead may have rubbed.

  • Confirm tire diameter and width match the wheel
  • Rinse off mud and sand after trail use
  • Check clearance after changing tire size

Specifications

Brand Method Race Wheels
Part number MRWMR70178560500
Product line 701 Trail Series (MR701 Bead Grip)
Construction One-piece cast 356 aluminum, T6 heat treated
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 6 on 5.5
Center bore 106
Offset 0
Backspacing 4.75
Style Windowed
Finish Matte black
Fitment type Universal fit

Vehicle fitment

No vehicle applications are given for this matte black wheel, and it is a universal fit design. Because bolt pattern, center bore and offset decide whether a wheel mounts correctly, compare those figures with your hub measurements first.

Use the wheel dimensions as the reference for fit. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Test-fit the wheel on the hub before a tire goes on, paying close attention to the 6 on 5.5 pattern and the 106 center bore. Check that the 4.75 backspacing clears brake parts and suspension at the tire width you plan to run.

What’s included

This is a single matte black wheel with no tire or hardware included.

Not included: Tire, lug nuts, valve stems and center caps.

SKU: MRWMR70178560500 Categories: ,

Questions & Answers

What are the bolt pattern and center bore on MRWMR70178560500?

The bolt pattern is 6 on 5.5 with a 106 center bore. It is 17 inches in diameter and 8.5 inches wide, with 0 offset and 4.75 backspacing.

Is this wheel vehicle specific?

This wheel is a universal fit design, so no specific vehicle applies. Compare the bolt pattern, center bore and offset with your hub before ordering.

What does the Bead Grip feature do?

Bead Grip is a patent pending design that engages the tire bead seat for increased grip at lower air pressures. It is one of the wheel's main features, alongside the reinforced inner lip.

How should I clean a matte black wheel?

Rinse off mud and grit with water first, then wash with a soft brush and mild soap. Avoid abrasive pads, which can mark the finish. Dry thoroughly before storing the wheel.
