Method Race Wheels MR703, 17x8.5 with 6 on 5.5 Bolt Pattern – Bronze – MR70378560900

Method Race Wheels

$356.50In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:30 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR703 17×8.5 windowed aluminum wheel in bronze, part number MRWMR70378560900
  • 6 on 5.5 bolt pattern, 106 center bore, 0 offset, 4.75 backspacing
  • Part of the MR703 Bead Grip series
  • Universal fit label; no specific vehicle named

Description

Overview

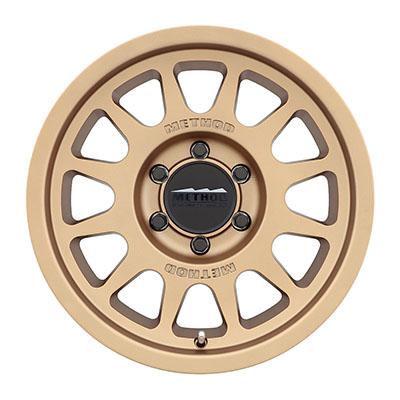

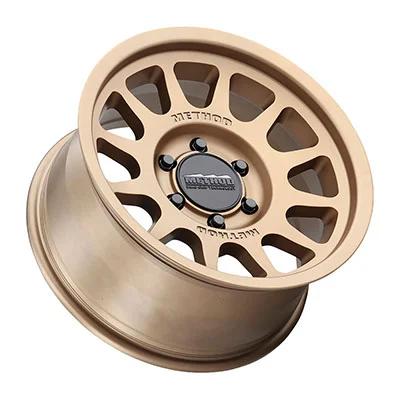

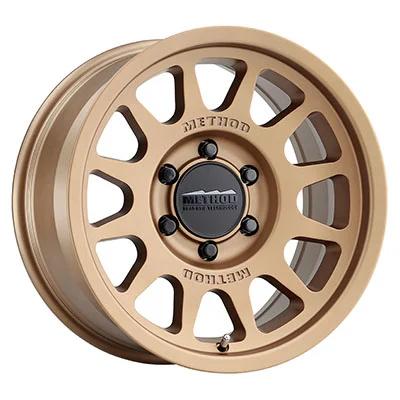

The Method Race Wheels MR703 17×8.5 in bronze is a windowed aluminum wheel with a 6 on 5.5 bolt pattern, part number MRWMR70378560900. It belongs to the MR703 Bead Grip series and comes with a 106 center bore, 0 offset and 4.75 backspacing.

Method Race Wheels is a company that builds wheels for the off-road racing community. The brand says each wheel is engineered for its intended use after numerous Finite Element Analysis runs and field tests. Method sums up the goal as a wheel that is lighter, stronger and faster.

Key features

  • Windowed style in a 17-inch diameter and 8.5-inch width
  • Bronze finish on aluminum construction
  • 6 on 5.5 bolt pattern with a 106 center bore
  • 0 offset and 4.75 backspacing
  • It is engineered with Finite Element Analysis and field testing.

Choosing hub-matched wheels

Wheel fitment depends on more than diameter and width. The hub face, center bore, bolt pattern, offset and backspacing all decide whether a wheel seats flush against the hub and clears the brake caliper and suspension. A wheel that looks right can still rub or vibrate if one figure is off, so measure before ordering and compare the results with your current wheels.

Aluminum wheels with a windowed face are common on trail builds because they keep weight down while leaving room for airflow to the brakes. Tire choice matters as well. A larger overall tire diameter or a wider tread can change clearance at full steering lock, and a tire that pushes against the fender can cause damage on rough trails.

  • Confirm lug count and bolt pattern on the hub
  • Check brake caliper clearance at the inside of the spoke
  • Look at tire width against fender liners
  • Replace lug nuts if the seats are worn or mismatched

Specifications

Brand Method Race Wheels
Part number MRWMR70378560900
Series MR703 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 6 on 5.5
Center bore 106
Offset 0
Backspacing 4.75
Style Windowed
Finish Bronze
Construction Aluminum

Vehicle fitment

Method marks this wheel universal fit, so it is not matched to a named year, make, model or trim. Fitment comes down to hub specifications: the 6 on 5.5 bolt pattern, 106 center bore, 0 offset and 4.75 backspacing need to agree with your vehicle before the wheel is mounted.

No vehicle is named for this wheel, and an 8-lug hub will not match a 6 on 5.5 pattern. Confirm your vehicle’s year, model and trim before ordering.

What’s included

The package contains one wheel.

Not included: Tires and lug nuts are not included with the wheel.

SKU: MRWMR70378560900 Categories: ,

Questions & Answers

What is the Method Race Wheels MR703 17x8.5 bronze wheel?

It is a 17 by 8.5 inch windowed aluminum wheel in bronze, with a 6 on 5.5 bolt pattern and part number MRWMR70378560900. It belongs to the MR703 Bead Grip series from Method Race Wheels.

Does the product name a vehicle this wheel fits?

No. The wheel is marked universal fit, but no year, make, model or trim is named. Match the 6 on 5.5 bolt pattern, 106 center bore, 0 offset and 4.75 backspacing to your vehicle before fitting.

What does Method say the wheel is built to do?

Method Race Wheels engineers each wheel with Finite Element Analysis and field testing, and the design aims to reduce weight while adding strength. The result is a wheel that is lighter, stronger and faster.

Should valve stems or tire pressure sensors be checked when mounting new wheels?

Yes. Check whether the vehicle uses tire pressure sensors and confirm the valve stems fit the new wheel. Sensor-equipped vehicles may need matching hardware or a sensor transfer, and the tire should be balanced after mounting.
