  • Method Race Wheels 305 NV 16×8 aluminum wheel in a black finish
  • Part number MRWMR30568060500 with a 6 on 5.5 bolt pattern
  • Center bore 108, offset 0, backspacing 4.5
  • Universal fit, with no vehicle tied to it

Description

Overview

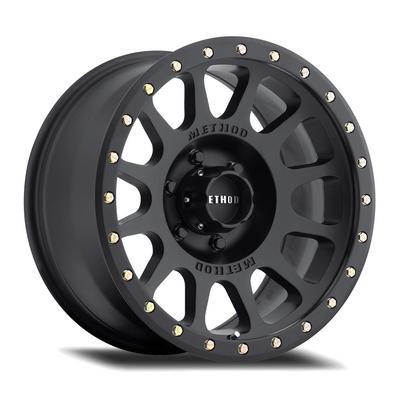

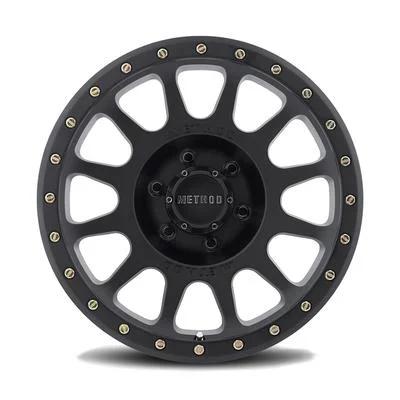

A 16×8 wheel in the Method Race Wheels 305 NV line, part number MRWMR30568060500, uses a 6 on 5.5 bolt pattern and a 108 center bore. It is an aluminum windowed wheel in a black finish, sized 16 inches in diameter and 8 inches wide, for owners who want a plain dark face on a six-lug wheel.

The MR305 NV series offers this size with an offset of 0 and a backspacing of 4.5. A bolt pattern is written as the lug count followed by the diameter of the circle the lug holes sit on, so 6 on 5.5 means six holes on a 5.5 circle. The center bore is the hole that centers the wheel on the hub.

Key features

  • Black finish on a windowed face
  • Aluminum build at 16 inches by 8 inches
  • Six-hole 6 on 5.5 bolt pattern
  • Center bore of 108 and offset of 0
  • Backspacing of 4.5 for inner clearance planning

Clearance and offset checks

Offset and backspacing work together to set how the wheel sits in the wheel well. A zero offset puts the mounting face at the centerline, while the 4.5 backspacing indicates how far the inner lip reaches toward the brakes and suspension. Measure inner clearance first, then check outer clearance with the tire fitted, because both sides can limit tire size.

Six-lug hubs are common on trucks and some SUVs, but the bolt pattern alone does not confirm fit. Pay attention to the center bore, lug seat style and hub face flatness. Re-check torque after the first few drives, and inspect the windowed face for cracks after hard trail use.

  • Measure inner clearance before mounting
  • Check outer clearance with the tire fitted
  • Re-torque lug nuts after the first drives

Specifications

Brand Method Race Wheels
Series MR305 NV
Part number MRWMR30568060500
Diameter 16 inches
Width 8 inches
Bolt pattern 6 on 5.5
Center bore 108
Offset 0
Backspacing 4.5
Style Windowed
Finish Black
Construction Aluminum

Vehicle fitment

No specific vehicle is tied to this wheel, so it is a universal fit. Use the bolt pattern, center bore and offset to decide whether it suits your hub and brake clearance.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Compare the 108 center bore to your hub before mounting, and check the 4.5 backspacing against suspension and brake clearance.

What’s included

Only the wheel is described here. Tires and lug nuts or bolts are needed separately to finish the setup.

SKU: MRWMR30568060500 Categories: ,

Questions & Answers

What is part MRWMR30568060500?

It is a Method Race Wheels 305 NV wheel sized 16x8 with a 6 on 5.5 bolt pattern. The center bore is 108, the offset is 0 and the backspacing is 4.5. The windowed face is finished in black, and the wheel is aluminum.

Will this wheel fit my truck or Jeep?

Confirm fit before buying. Compare the 6 on 5.5 pattern and 108 center bore with your hub, and check clearance for the 0 offset. No year, make, model or trim is tied to this wheel.

Are tires and lug hardware included with this wheel?

No. This wheel is sold alone, so tires and lug nuts or bolts must be obtained separately before the wheel can be mounted on a vehicle.

Does a black finish need special cleaning?

A mild cleaner and soft brush are enough for most black finishes. Avoid abrasive pads and strong solvents, since they can dull the surface and make brake dust harder to remove over time.
