Overview

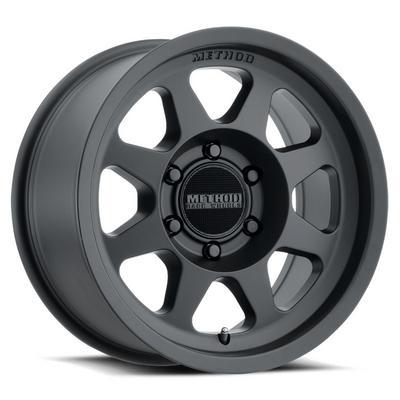

The Method Race Wheels 701 Trail Series 17×8.5 wheel in Matte Black, part number MRWMR70178558500, is a 17-inch by 8.5-inch aluminum trail wheel with a 5 on 150 bolt pattern, 111 center bore, 0 offset and 4.75 backspacing.
The wheel is one-piece cast from 356 aluminum and T6 heat treated. Its MR701 Bead Grip design engages the tire bead seat so the bead keeps its grip at lower air pressures on trails. It is a universal fit wheel, so it is not tied to a single vehicle. The windowed Matte Black wheel includes a reinforced inner lip and a bead seat safety hump.
Key features
- One-piece cast 356 aluminum with T6 heat treatment
- Bead Grip design that engages the tire bead seat for extra grip at lower pressures
- Reinforced inner lip carried over from Method’s race wheel design
- Aggressive safety hump on the inner and outer bead seat to resist de-beading
- Development included Finite Element Analysis and field testing.
- No weight figure is available, so compare weights directly if weight matters to your build.
- Windowed style in Matte Black finish
Choosing the right setup
A wheel is only one part of the setup. Tire size, load rating and sidewall stiffness all influence how a bead behaves at low pressure, so pick the tire first and then confirm that the wheel width suits it. Overly narrow or overly wide combinations can change sidewall flex and handling.
If you plan to add a lift or larger tires, check the rear lip and mounting face against the fender and suspension components. Brake caliper clearance is often the first limit reached when the wheel sits deeper in the hub. Recheck clearance after any suspension change.
- Confirm the hub matches the bolt pattern and center bore
- Check brake and suspension clearance with the planned tire
- Re-check fit after changing tire size or suspension height
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178558500 |
| Series | 701 Trail Series, MR701 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 150 |
| Center bore | 111 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treated |
| Style | Windowed |
| Finish | Matte Black |
Vehicle fitment
It is a universal fit wheel, not written for one make, model or year. Match the 5 on 150 bolt pattern, 111 center bore, 0 offset and 4.75 backspacing against your hub, then confirm clearance around brakes and suspension.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because offset and backspacing set how deep the wheel sits, check caliper and fender clearance with the intended tire before the wheel is put into regular service.
What’s included
Whether lug nuts, center caps or valve stems are included is unknown. Check the package contents before starting the installation.
Not included: Tires are not part of this wheel and must be bought separately.
