Overview

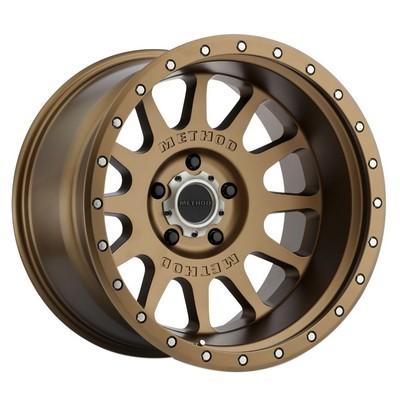

The Method Race Wheels MR605 NV 20×10 with an 8 on 170 bolt pattern, part number MRWMR60521087924N, is a bronze, windowed aluminum wheel from Method’s 600 Series. It is 20 inches in diameter and 10 inches wide, and it has a Street-Loc lip.
The 8-lug configuration is rated at 3640 lbs, higher than the 2650 lb rating for 5 and 6 lug applications. The MR605 NV builds on the MR305 NV with more aggressive dimensions and suits lifted trucks, Jeeps and SUVs. It is universal fit, so the 8 on 170 pattern and 125 center bore decide whether it mounts on your hub.
Key features
- The eight-lug version uses a bolt-on center cap rather than a snap-in cap.
- Street-Loc lip with removable stainless steel bolts around the lip.
- A 3-inch lip on the 20×10 size.
- Two debossed Method logos appear across the bolt circle area.
- Offset -24 and backspacing 4.55 give a deep-dish face.
- Load rating of 3640 lbs for 8 lug applications.
Eight-lug cap and pairing
Eight-lug hubs carry more clamp load per wheel than five- or six-lug layouts, so the fastener seating matters even more. A bolt-on center cap is fastened in place rather than snapping in, which means the cap screws should be checked during routine service. Keep the cap fasteners with the ring during mounting so nothing is lost.
When pairing a tire, match its load capacity to the wheel’s rating and to the vehicle’s axle load rather than relying on the wheel rating alone. A heavier tire also changes the rolling diameter, which can affect speedometer accuracy and gearing on trails.
- Check the bolt-on cap fasteners at service intervals
- Match tire load capacity to the wheel rating
- Recheck lug nuts after the first drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR60521087924N |
| Series | MR605 NV (600 Series) |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Lip | 3 inches (20×10) |
| Offset | -24 |
| Backspacing | 4.55 |
| Center bore | 125 |
| Bolt pattern | 8 on 170 |
| Style | Windowed |
| Finish | Bronze |
| Construction | Aluminum, one-piece |
| Load rating | 3640 lbs (8 lug applications) |
| Fitment | Universal Fit (as labeled) |
Vehicle fitment
Method labels this wheel universal fit, so it is not tied to a single model or year. Select it first by the 8 on 170 bolt pattern and 125 center bore, then check offset and backspacing against your suspension.
An 8-on-170 pattern does not match 5 or 6 lug hubs or other 8-lug bolt circles. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Eight lug versions use a bolt-on cap, so the center cap is fastened in place instead of snapping in. Confirm the 125 center bore matches your hub, and on lifted vehicles check clearance against the -24 offset.
What’s included
The product covers the wheel with its aluminum center ring, bolt-on cap and removable stainless steel lip bolts.
Not included: Tires and lug nuts are not included with this wheel.
