Overview

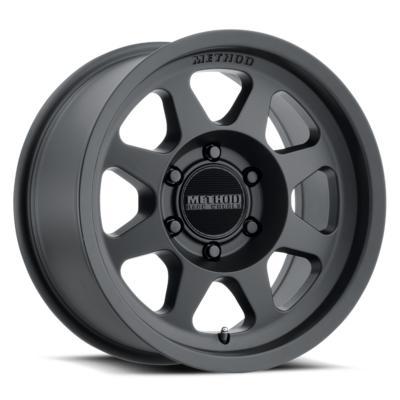

The Method Race Wheels 701 Trail Series 17×9 in Matte Black, part number MRWMR70179055512N, is an off-road aluminum wheel with a 5 on 5.5 bolt pattern, a 108 center bore and a -12 offset. It belongs to the MR701 Bead Grip series and uses the windowed style Method offers in this line.
Method cast this wheel in one piece from 356 aluminum and T6 heat treated it. Its patent-pending Bead Grip design is meant to hold the tire bead against the bead seat when trail drivers run lower air pressures. A reinforced inner lip, which Method says follows its race wheel design, and safety humps on the inner and outer bead seats round out the build, keeping the tire seated under hard driving.
Key features
- Bead Grip technology, patent pending, that engages the tire bead seat for added grip at lower pressures
- One-piece cast 356 aluminum body with T6 heat treatment
- Reinforced inner lip carried over from Method’s race wheel design
- Safety humps on the inner and outer bead seats to stabilize the tire and help prevent de-beading
- Windowed style in a Matte Black finish
- The wheel was refined with finite element analysis and field testing, with the aim of reducing weight and adding strength.
Bead grip and tire pressure
Many trail drivers lower tire pressure to gain traction on rock and sand. Lower pressure lets the tire flex more, but it also raises the chance of the bead moving on the bead seat during hard turns. A bead grip design is intended to hold the tire bead against the wheel in those conditions, which is why bead seat condition matters.
Bead seats should be kept clean and free of corrosion or deep scratches. A worn bead seat or a damaged inner lip can make a tire harder to hold at low pressure, so inspect after rough runs. When mounting, use a bead lubricant made for tires and avoid damaging the bead with tire irons.
- Keep bead seats clean and free of corrosion
- Inspect the inner lip after rough runs
- Use tire-approved bead lubricant when mounting
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70179055512N |
| Series | MR701 Bead Grip |
| Style | Windowed |
| Finish | Matte Black |
| Construction | One-piece cast 356 aluminum, T6 heat treated |
| Wheel diameter | 17 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 5 on 5.5 |
| Center bore | 108 |
| Offset | -12 |
| Backspacing | 4.6 |
Vehicle fitment
A universal fit designation applies, but no vehicle, model year or chassis is confirmed. Compare the 5 on 5.5 bolt pattern, 108 center bore, -12 offset and 9 Inches width with your hub and clearance before choosing this wheel.
A wheel with a different bolt count or center bore will not mount to this hub, so do not substitute one without checking those dimensions. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Test-fit the wheel against your hub and check brake and suspension clearance, since the -12 offset changes where the wheel sits relative to the hub. Set tire pressures for trail use, bearing in mind the Bead Grip design is intended for lower pressures.
What’s included
Check the package contents against your installation before starting.
Not included: Confirm which tires, valve stems and lug nuts you need before ordering.
