Method Race Wheels 106 Beadlock, 17x9 Wheel with 6x5.5 Bolt Pattern – Matte Black – MR10679060544B

Method Race Wheels

$514.55In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 8:50 AM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 106 Beadlock 17×9 wheel, part MRWMR10679060544B
  • 17 inches diameter, 9 inches width, 6 on 5.5 bolt pattern
  • One-piece cast 356 aluminum with T6 heat treatment
  • Offset -44, center bore 108, backspacing 3.5
  • Matte black finish, beadlock style
  • Marked Universal Fit; confirm hub match before ordering

Description

Overview

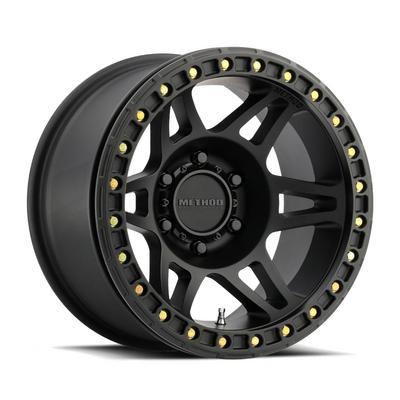

The Method Race Wheels 106 Beadlock, part number MRWMR10679060544B, is a 17×9 off-road wheel with a 6 on 5.5 bolt pattern and a matte black finish. Its beadlock style uses a locking ring that clamps the tire bead to the wheel, which helps the tire stay seated when run at low pressures off road.

The wheel is one-piece cast 356 aluminum with T6 heat treatment. Its V.3 ring is 53% thicker than the ring on the original 101, which reduces deflection.

Key features

  • One-piece cast 356 aluminum construction with T6 heat treatment
  • V.3 ring 53% thicker than the original 101 ring, which the brand says greatly reduces deflection
  • Engineered for strength with less weight
  • Beadlock style for off-road use
  • Matte black finish
  • Built to limit weight while raising strength

Beadlock seating and pressure

Beadlock seating works by clamping the tire bead against the wheel with a ring and bolts. Running low pressure lets the sidewall flex and the tire move around the rim, so the lock matters most when the tire is soft. Once the tire is seated, keep the rated pressure in mind instead of guessing at a safe number.

Good seating starts with a clean, undamaged bead seat and even tightening of the ring bolts. After the first run, recheck bolt torque, look for bead movement and listen for air leaks at the seal. Off-road tires can grow slightly as they heat, so check pressure when the tires are cool.

  • Tighten ring bolts in a star pattern
  • Check pressure with cold tires
  • Note any bead movement after a run

Specifications

Brand Method Race Wheels
Part number MRWMR10679060544B
Series MR106 Beadlock
Style Beadlock
Wheel diameter 17 inches
Wheel width 9 inches
Offset -44
Center bore 108
Backspacing 3.5
Bolt pattern 6 on 5.5
Construction One-piece cast 356 aluminum, T6 heat treatment
Finish Matte Black
Fitment Universal Fit

Vehicle fitment

The wheel carries a Universal Fit label, but fit depends on bolt pattern, center bore, offset and backspacing together. Check the 6 on 5.5 pattern, 108 center bore, -44 offset and 3.5 backspacing against your hub. Wheels with the same bolt pattern can still differ in offset and backspacing, which change how the wheel sits against the hub and fender.

Confirm your vehicle’s year, model and trim before ordering.

What’s included

Review what ships with the wheel against your installation plan first, including tires, lug nuts and valve stems.

SKU: MRWMR10679060544B Categories: ,

Questions & Answers

Is the Method 106 Beadlock 17x9 wheel a universal fit?

It is marked Universal Fit, but no specific vehicle is listed. Check the 6 on 5.5 bolt pattern, 108 center bore, -44 offset and 3.5 backspacing against your hub before ordering.

What material is the Method MR106 Beadlock made from?

The MR106 Beadlock is a one-piece cast 356 aluminum wheel with T6 heat treatment. Method Race Wheels says its V.3 ring is 53% thicker than the original 101 ring, which greatly reduces deflection.

What are the size and bolt pattern of part MRWMR10679060544B?

Part MRWMR10679060544B is a 17 inches diameter, 9 inches wide wheel with a 6 on 5.5 bolt pattern, offset -44, center bore 108 and backspacing 3.5. Its finish is matte black and its style is beadlock.

Does the wheel come with tires or lug nuts?

Tires, lug nuts and valve stems are not covered in this wheel's contents, so review the package contents before ordering to avoid duplicate parts.

How often should beadlock rings be inspected?

Inspect the ring and bolts after each trail day, looking for bent edges, loose bolts or bead damage. Retighten fasteners to the torque in your installation instructions before the next run.
