Overview

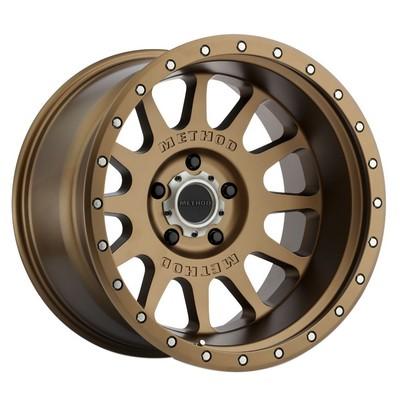

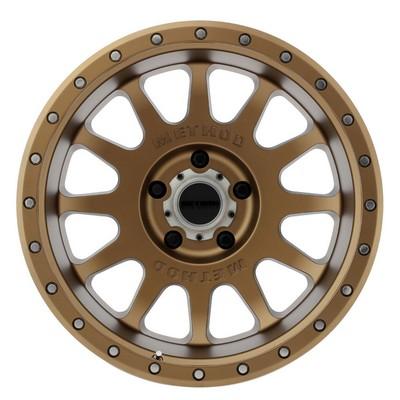

The Method Race Wheels MR605 NV is a 20×10 windowed aluminum wheel in bronze, part number MRWMR60521050924N, built on a 5 on 5 bolt pattern. It leads off the brand’s 600 Series, and Method presents it as an evolution of the popular MR305 NV with more aggressive dimensions.
The design is intended for lifted trucks, Jeeps and SUVs and can give a deep-dish look. The 20×10 size carries a 3-inch lip, and the same series offers a 20×12 with a 5.25-inch lip. Bolt pattern, center bore and offset must be matched to your own hub before mounting.
Offset is the distance from the wheel’s mounting face to its centerline, while backspacing is the distance from that face to the inner edge of the wheel. Here the offset is -24 and the backspacing is 4.55, which places the wheel further outward than a positive-offset wheel, so clearance against suspension and brake parts is worth measuring.
Key features
- Street-Loc lip on the one-piece wheel, which Method calls its signature lip design
- Removable stainless steel bolts set around the lip
- Bolt-on aluminum center ring with a snap-in cap and raised Method logo for 5 and 6 lug applications
- Two debossed Method logos around the bolt circle
- Load ratings of 2650 lbs for 5 and 6 lug applications and 3640 lbs for 8 lug
Clearance for a deep-dish fit
Deep-dish wheels place the mounting face further outward, which changes how the wheel clears brake calipers and suspension parts. A negative offset pulls the tire toward the fender, so tire width and sidewall height matter. Measure clearance with the tire mounted, at full steering lock and at full suspension travel, rather than relying on a static check in the driveway.
Lifted vehicles often have less room because the axle sits higher and the suspension moves further. Wheel spacers and wider tires can add contact points. Recheck after any lift, alignment or tire change. A windowed design also shows more brake hardware, so look for rub marks on the inner barrel after a test drive and address them before continuing.
- Measure caliper clearance before mounting
- Check steering lock with the tire installed
- Inspect for rub marks after the first drive
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR60521050924N |
| Series | MR605 NV |
| Wheel diameter | 20 inches |
| Wheel width | 10 inches |
| Bolt pattern | 5 on 5 |
| Center bore | 72 |
| Offset | -24 |
| Backspacing | 4.55 |
| Style | Windowed |
| Finish | Bronze |
| Construction | Aluminum |
| Lip width | 3 inches (20×10 size) |
| Load rating | 2650 lbs (5 and 6 lug) |
| Fitment label | Universal Fit |
Vehicle fitment
Universal Fit is a general label. A 5 on 5 pattern, 72 center bore and -24 offset only work on hubs that match, so measure your hub before choosing this wheel.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 5 on 5 bolt pattern and 72 center bore against your hub, then measure clearance for the -24 offset at the fender and brake calipers. Lifted vehicles often leave less room, so recheck clearance after the suspension is set. Do not drive on a wheel that rubs or does not seat fully.
What’s included
The wheel ships with its center ring, snap-in cap and removable lip bolts. Lug nuts, valve stems and tires are not included.
Not included: Tires, lug nuts and valve stems are not part of this wheel.
