Overview

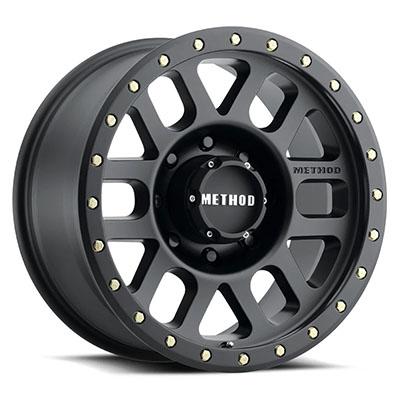

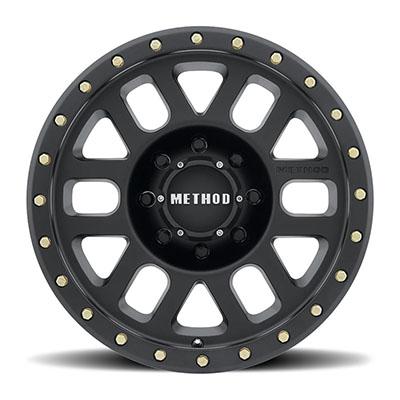

The Method Race Wheels 309 Grid 18×9 in matte black, part number MRWMR30989080518, is an aluminum mesh wheel with an 8 on 6.5 bolt pattern and a 131 center bore. It has an offset of 18 and backspacing of 5.75. The name lists matte black and the spec sheet lists black.
Method Race Wheels built the 309 Grid for off-road racing use, using Finite Element Analysis and field testing. The design aims for a wheel that is lighter and stronger.
Key features
- Mesh style on an aluminum body
- 18 inch diameter and 9 inch width
- 8 on 6.5 bolt pattern and 131 center bore
- Offset 18 with backspacing 5.75
- Matte black finish.
Offset and wheel position
Offset and backspacing decide where the wheel sits relative to the hub and the fender. A wheel with a positive offset tucks inward, while a smaller number pushes the face outward. Each change shifts the tire toward or away from brake calipers and suspension parts.
Tire width and sidewall height also change clearance, so the same wheel can fit one setup and rub on another. Measure the gap between the tire and the fender at full steering lock and at full compression before settling on a setup.
Spacers are a common way to adjust position, but they add load to studs and bearings. Use hub-centric spacers and studs long enough to engage the lug nuts fully, and recheck torque after the first few drives.
- Measure fender clearance at full lock
- Check brake caliper clearance behind the spokes
- Recheck torque after the first short drive
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30989080518 |
| Series | MR309 Grid |
| Construction | Aluminum |
| Style | Mesh |
| Finish | Black (spec sheet); matte black (product name) |
| Wheel diameter | 18 inches |
| Wheel width | 9 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | 18 |
| Backspacing | 5.75 |
Vehicle fitment
Fitment is Universal Fit, so the wheel is not tied to a single vehicle. Match the 8 on 6.5 pattern, 131 bore, offset and backspacing to your truck or Jeep before mounting.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Offset of 18 and backspacing of 5.75 affect how the wheel sits in the wheel well, so measure tire and brake clearance. Confirm the 131 center bore is correct for your hub.
What’s included
Check the package contents against your installation before starting, including any caps or lug nuts.
