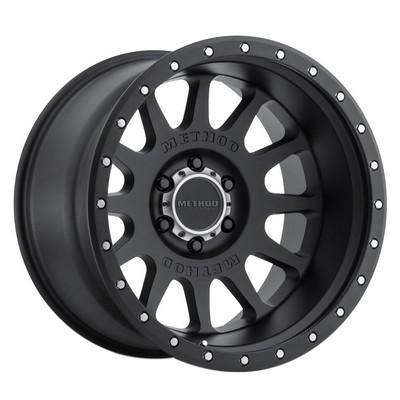

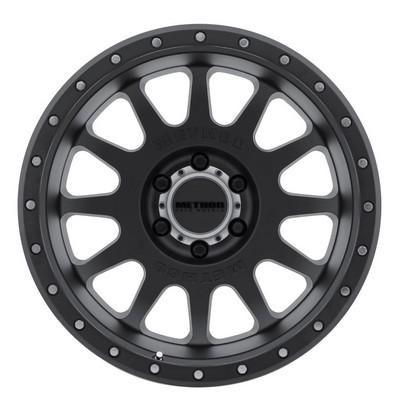

Method Race Wheels MR605 NV, 20x12 with 5x5 Bolt Pattern – Matte Black – MR60521250552N

Method Race Wheels

Shop Method Race Wheels 20x12 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR605 NV 20×12 wheel in Matte Black, part number MRWMR60521250552N
  • Size 20 x 12 inches, offset -52, center bore 72, backspacing 4.5
  • Bolt pattern 5 on 5 with a snap-in center cap for 5 and 6 lug use
  • Load rating of 2650 lbs for 5 and 6 lug applications
  • Universal Fit, so match offset and bolt pattern to your hub before ordering

Description

Overview

This Matte Black Method Race Wheels MR605 NV in 20×12 size, part number MRWMR60521250552N, is drilled for a 5 on 5 bolt pattern. It is part of Method’s 600 Series and an evolution of the MR305 NV, with a wider face and deeper dish. The maker positions the design for lifted trucks, Jeeps and SUVs that run five lug hubs.

The 20×12 size has a 5.25 inch lip, deeper than the 3 inch lip on the 20×10 version. A snap-in cap with a raised logo covers the 5 and 6 lug center, and the wheel carries a 2650 lb rating for 5 and 6 lug applications.

Key features

  • Matte Black finish on a one-piece aluminum wheel
  • Street-Loc lip with removable stainless steel bolts
  • 5.25 inch lip on the 20×12 size
  • Snap-in center cap with raised Method logo for 5 and 6 lug applications
  • Two debossed Method logos around the bolt circle
  • 2650 lb load rating for 5 and 6 lug applications

Wide wheels and tire rub

A wider wheel moves the tire closer to the fender and suspension at full steering lock. Rub points often appear first at the tire shoulder, where the sidewall bulges under load. Measuring at full lock and at full suspension travel reveals contact that a static check misses, so plan a test run at low speed before highway use.

Tire choice affects clearance as much as the wheel does. Tires with wider treads and taller sidewalls take more room, while lower-profile tires leave less space for the wheel to flex. Check tire pressure before each trip, since air pressure changes how the sidewall sits.

  • Test steering lock with the tire installed
  • Inspect tire shoulders for rub marks
  • Re-check after any tire or suspension change

Specifications

Brand Method Race Wheels
Part number MRWMR60521250552N
Series MR605 NV
Wheel diameter 20 Inches
Wheel width 12 Inches
Offset -52
Center bore 72
Backspacing 4.5
Bolt pattern 5 on 5
Lip 5.25 inch lip on the 20×12 size
Load rating 2650 lbs (5 and 6 lug)
Style Windowed
Finish Matte Black
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

Universal Fit is the only fitment term shown, so the wheel is not tied to a named vehicle. Fit comes down to the 5 on 5 pattern, 72 center bore and -52 offset, which should be measured against the hub and fender of the vehicle in question.

Eight lug wheels in this series use a bolt-on cap, a different center design from this snap-in version. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A -52 offset sits the wheel further outward than a standard offset, so check fender and steering clearance on lifted vehicles before mounting. Confirm the 72 center bore suits your hub as well.

What’s included

The wheel includes its center ring, snap-in cap and stainless steel lip bolts as part of the design described above.

Not included: tires.

SKU: MRWMR60521250552N Categories: ,

Questions & Answers

Does the MR605 NV 20x12 with 5 on 5 bolt pattern fit a specific vehicle?

Universal fit means no year, make or model is tied to this wheel. Check the 5 on 5 bolt pattern, 72 center bore and -52 offset against your hub and fender clearance before buying.

What load rating does this 20x12 wheel have?

Method rates 5 and 6 lug applications at 2650 lbs. The 8 lug rating of 3640 lbs applies to the bolt-on cap version, not to this 5 on 5 wheel.

What is the part number for this Matte Black 20x12 wheel?

The part number is MRWMR60521250552N. It identifies a Method Race Wheels MR605 NV in 20x12 with a Matte Black finish, 5 on 5 bolt pattern, -52 offset and 4.5 backspacing.

How do I tell if a wheel is rubbing?

Look for shiny or scuffed areas on the tire sidewall and fender lip after a drive, and listen for scraping at full steering lock. Rub marks usually show where clearance is tight, so measure again before continuing.
