Method Race Wheels MR705, 17x8.5 with 6 on 5.5 Bolt Pattern – Matte Black – MR70578560500

Method Race Wheels

$354.44In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 12:40 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR705 17×8.5 split-spoke wheel in Matte Black, 6 on 5.5 bolt pattern.
  • Bead Grip construction from the MR705 line for running lower tire pressures.
  • Center bore 106, offset 0, backspacing 4.75.
  • Solid A356 aluminum with T6 heat treatment.
  • Universal Fit wheel; part number MRWMR70578560500.

Description

Overview

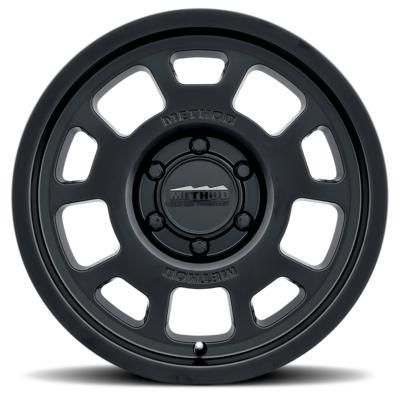

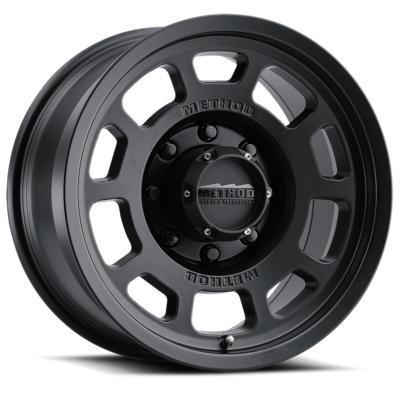

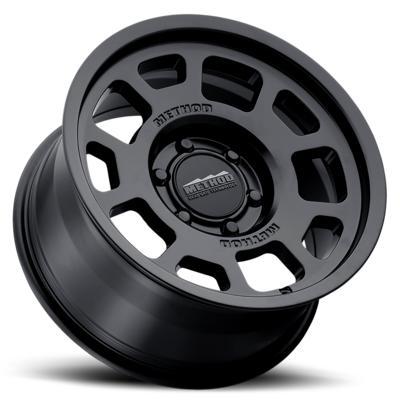

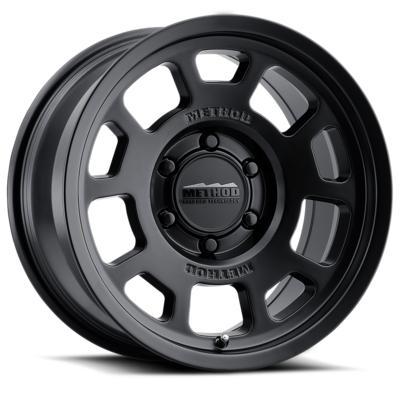

The Method Race Wheels MR705 17×8.5 in Matte Black is a split-spoke aluminum wheel for a 6 on 5.5 bolt pattern. It carries part number MRWMR70578560500, has offset 0, center bore 106 and backspacing 4.75, and belongs to the MR705 Bead Grip series that Method designs for lower-pressure off-road running.

The Bead Grip design lets the tire run at lower pressure than a standard wheel allows, without the bead slipping off the rim. The contact patch grows on loose ground, which gives a softer ride. Bolt pattern, hub bore and backspacing determine whether this wheel fits your vehicle.

Key features

  • Patented Bead Grip technology holds the tire bead at low pressures.
  • T6 heat-treated solid A356 aluminum body.
  • Split 5-spoke layout with 10 windowed openings and a debossed METHOD face logo.
  • A pronounced safety hump on each bead seat works against de-beading.
  • Reinforced inner lip, described by the brand as drawn from its MRW race wheel.
  • Center cap that snaps in, marked with an embossed METHOD Bead Grip logo.
  • A push-through cap version is made for 8-lug applications.
  • Strength ratings listed at 2650 lbs. to 3640 lbs.

Using a hub-centric ring

A hub-centric ring fills the gap between a wheel’s center bore and a hub that is larger than the bore. It centers the wheel on the hub, so the lug studs carry only the clamping load and do not have to locate the wheel. Without that centering, a wheel can vibrate at speed and put extra stress on the studs.

Rings are sized to the hub, so measure the hub bore with calipers and compare it with the wheel bore before buying. Keep both faces clean so the wheel seats flat against the hub, and recheck lug torque after the first few drives.

  • Measure the hub bore before ordering
  • Match the ring to the hub, not the lug pattern
  • Clean the hub face before fitting
  • Recheck lug torque after the first few drives

Specifications

Brand Method Race Wheels
Part number MRWMR70578560500
Series MR705 Bead Grip
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 6 on 5.5
Offset 0
Center bore 106
Backspacing 4.75
Style Split Spoke
Finish Matte Black
Construction Solid A356 aluminum with T6 heat treatment
Load rating 2650 lbs. to 3640 lbs.

Vehicle fitment

No vehicle is named for this wheel, and it is marked Universal Fit. Fitment depends on the 6 on 5.5 bolt pattern, 0 offset, 4.75 backspacing and 106 center bore matching your hub and brake setup. If the bore does not match your hub, a hub-centric ring may be needed, so measure before ordering.

Verify year, model and trim against your vehicle before buying.

Installation notes

Have the tire mounted by a shop that regularly works with Bead Grip rims, since the bead seat design is what allows lower pressure running. After mounting, check clearance to calipers and suspension parts, and recheck after the first hard off-road run.

What’s included

A snap-in center cap with an embossed METHOD Bead Grip logo is included, with no other hardware.

Not included: Tires, lug nuts and valve stems are not included, so obtain them before installing the wheel.

SKU: MRWMR70578560500 Categories: ,

Questions & Answers

Is part MRWMR70578560500 a 6 on 5.5 wheel?

Yes. The bolt pattern is 6 on 5.5, with a 106 center bore, 0 offset and 4.75 backspacing. The finish is Matte Black, and the wheel measures 17 inches by 8.5 inches.

What is the wheel made from?

It is solid A356 aluminum with T6 heat treatment, a construction that suits the wheel's split-spoke design and Bead Grip bead seats.

Which vehicles is this MR705 wheel built for?

This wheel is marked Universal Fit rather than built for a particular make or model year. Check the 6 on 5.5 bolt pattern, 0 offset, 4.75 backspacing and 106 center bore against your hub before ordering.

Do I need a hub-centric ring with this wheel?

It depends on the hub. If your hub is a different size than the 106 center bore, a hub-centric ring is needed to center the wheel. Measure the hub before ordering so you know whether a ring is required.
