  • Method Race Wheels 704 Trail Series 17×8.5 wheel, part number MRWMR70478516800
  • One-piece cast 356 aluminum wheel with a 6 on 135 bolt pattern
  • Center bore 87, offset 0, backspacing 4.75
  • Matte Titanium finish with a windowed style
  • Bead Grip design; no vehicle is named, so verify the hub match first

Description

Overview

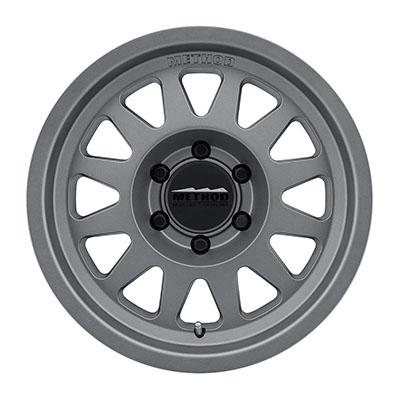

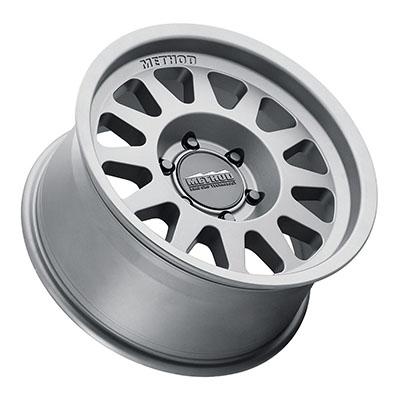

Method’s 704 Trail Series 17×8.5 wheel in Matte Titanium, part number MRWMR70478516800, is a one-piece cast aluminum wheel with a 6 on 135 bolt pattern. It comes from the MR704 Bead Grip line and is designed for off-road applications.

Method Race Wheels was founded around wheels for off-road racers, and this 704 was engineered for that audience. Each wheel went through numerous Finite Element Analysis studies and field tests before release. The line aims to cut weight and add strength. The center bore of 87, offset of 0 and backspacing of 4.75 are the measurements to match against a hub.

Key features

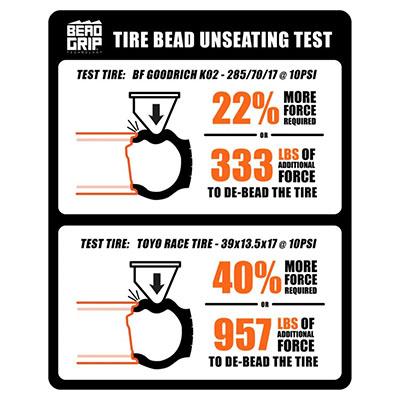

  • Bead Grip design, which Method says grips the tire bead seat for lower running pressures
  • Cast 356 aluminum, one-piece construction, T6 heat treated
  • Inner lip reinforced using race wheel design
  • Inner and outer bead seats each have an aggressive safety hump to help prevent de-beading
  • Windowed style and Matte Titanium finish
  • Finite Element Analysis and field testing used in development

Choosing trail tires

Tires and wheels work as one assembly. A tire with a stiff, well-built bead and a sidewall rated for the load will sit more reliably on a bead grip design than a worn or undersized tire. When picking tires, match the tire width to the wheel’s width within the range the tire is rated for, and keep the overall diameter close to what the vehicle was set up for.

Tread choice depends on the terrain. Aggressive tread gives bite on rock and mud but can be louder and wear faster on pavement. Sidewall damage from sharp rock is a common reason tires come off the bead, so inspect the sidewall and bead area after rough days.

  • Match tire width to the wheel’s rated range
  • Check sidewalls after sharp rock contact
  • Replace valve stems during tire service when they show cracking

Specifications

Brand Method Race Wheels
Part number MRWMR70478516800
Series MR704 Bead Grip (704 Trail Series)
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 6 on 135
Center bore 87
Offset 0
Backspacing 4.75
Construction One-piece cast 356 aluminum, T6 heat treatment
Finish Matte Titanium
Style Windowed

Vehicle fitment

This wheel is universal fit and is not built for a particular vehicle. A universal fit wheel does not confirm clearance for any particular hub. Check the 6 on 135 bolt pattern, 87 center bore and 17×8.5 size against your vehicle, and measure your hub before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Bead Grip is aimed at lower running pressures, so choose pressure within the tire’s rated range before airing down. Verify the 6 on 135 pattern and 87 center bore against the hub before mounting. A shop with wheel and tire experience should handle mounting and balancing if you have not worked on wheels before.

What’s included

Confirm the package contents before starting the installation.

SKU: MRWMR70478516800 Categories: ,

Questions & Answers

Is part MRWMR70478516800 a 6 on 135 wheel?

Yes. It has a 6 on 135 bolt pattern, 17-inch diameter, 8.5-inch width, 87 center bore, 0 offset and 4.75 backspacing. Match those measurements to your hub before ordering, since no vehicle is named.

Which vehicles does this 704 wheel fit?

No specific vehicle is covered. The wheel is universal fit, so check the bolt pattern, center bore and size against your own hub before buying.

What is Bead Grip?

Bead Grip is a patent-pending design that engages the tire bead seat for more grip at lower air pressures. Safety humps on both bead seats are meant to help stabilize the tire and prevent de-beading.

Is the wheel's finish and style specified?

Yes. The finish is Matte Titanium and the style is windowed. The part number is MRWMR70478516800, and the wheel belongs to the MR704 Bead Grip series within the 704 Trail Series.

How often should the tire bead be checked on a bead grip wheel?

Check the bead at every tire removal and after any hard trail session. Look for corrosion, debris or a bead that sits unevenly against the seat. A bead that will not hold air after reseating means the tire or wheel should be inspected before further use.
