Overview

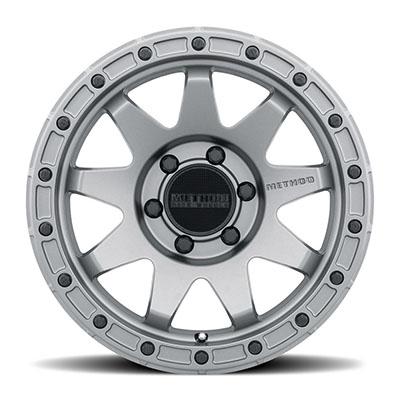

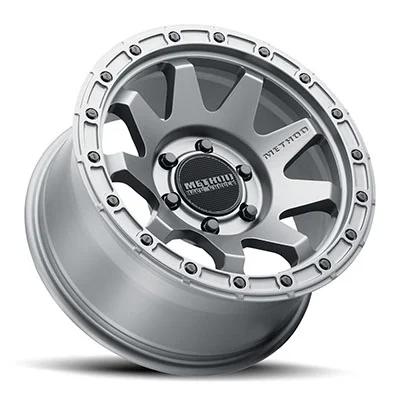

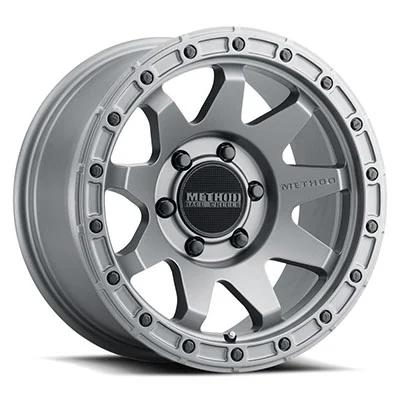

The Method Race Wheels MR317 18×9 is a titanium spoke wheel in aluminum, part number MRWMR31789060803. It measures 18 inches across and 9 inches wide, with a 6 on 5.5 bolt pattern, a center bore of 106, an offset of 18 and a backspacing of 5.1. Check those figures against your hub before choosing this wheel.
Method Race Wheels builds wheels for off-road racing. The MR317 is engineered through analysis and field trials, with the aim of lower weight and higher strength.
Key features
- Titanium finish on a spoke design
- 18 by 9 inch aluminum wheel
- 6 on 5.5 bolt pattern with center bore 106
- Backspacing 5.1 with offset 18
- Part of the MR317 series
Care and inspection
Spoke wheels trap brake dust and road grime in the gaps between spokes, so clean them regularly with a pH-neutral wheel cleaner and a soft brush. Titanium-look finishes can be scratched by abrasive pads, so skip those. After the first few drives, check the lug nuts for proper torque and recheck them once the wheel has been removed and remounted.
Inspect the wheel after trail use. Look for bends at the bead, cracks near the spoke roots, and chips that expose bare metal. Damaged aluminum should be replaced rather than straightened. Tire pressure and tire condition also change how much stress the wheel sees, so keep both in the range suited to your vehicle and terrain.
- Inspect for cracks after hard impacts
- Recheck lug torque after the first runs
- Use non-abrasive cleaners only
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31789060803 |
| Series | MR317 |
| Diameter | 18 inches |
| Width | 9 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 18 |
| Backspacing | 5.1 |
| Style | Spoke |
| Finish | Titanium |
| Construction | Aluminum |
Vehicle fitment
This wheel is not tied to a named vehicle. It is a universal fit design, so the bolt pattern, center bore and offsets together decide whether a given hub can accept it.
A titanium finish has no bearing on which vehicles the wheel clears; only the measurements do. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Seat the wheel squarely on the hub and make sure the 106 bore fits without force. If the bore is larger than the hub, fit a centering ring before mounting.
What’s included
This wheel is sold alone.
Not included: tires, lug hardware and center caps.
