Method Race Wheels 306 Mesh, 17x8.5 with 6 on 135 Bolt Pattern – Matte Black – MR30678516500

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR306 Mesh 17×8.5, part number MRWMR30678516500
  • 6 on 135 bolt pattern, 94 center bore, offset 0, backspacing 4.75
  • Matte black aluminum with replaceable 13mm lip bolts
  • Recorded as Universal Fit with no vehicle named

Description

Overview

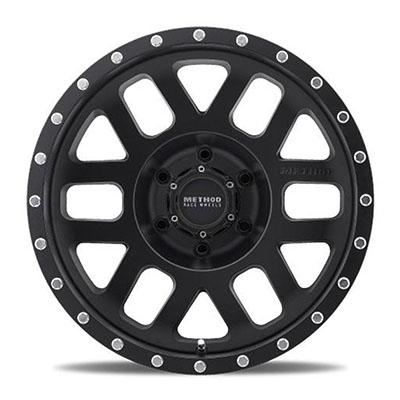

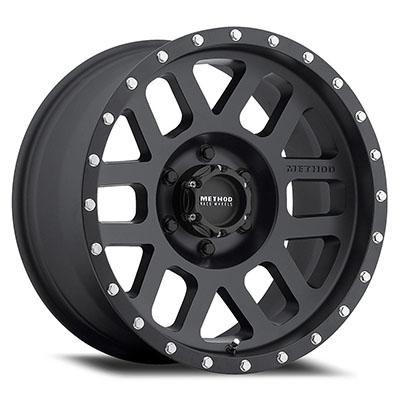

The Method Race Wheels MR306 Mesh 17×8.5 with a 6 on 135 bolt pattern is a matte black aluminum wheel, part number MRWMR30678516500. Its 17 inch diameter and 8.5 inch width pair with a 94 center bore, 0 offset and 4.75 backspacing.

The mesh design keeps a simple, understated look that Method ties to the original Standard. It uses 13mm decorative polished bolts around the lip, which the brand says are fully replaceable. A black center cap comes with the wheel, and the Method name is machined into a spoke.

The MR306 line is made in sizes from 16 to 20 inches for trucks, Jeeps and SUVs. With a 6 on 135 pattern, hub compatibility is the first check, ahead of any other measurement.

Key features

  • Matte black aluminum mesh wheel
  • 17 inch diameter and 8.5 inch width
  • 6 on 135 bolt pattern
  • 94 center bore, 0 offset, 4.75 backspacing
  • Decorative 13mm polished lip bolts, replaceable
  • Black center cap included

Before you buy

Bolt pattern is the one measurement that cannot be adjusted away. A 6 on 135 wheel needs a six-stud hub with the same spacing, and a hub with a different count will not accept it at all. Because the pattern is fixed, shopping for this style starts with reading the hub’s stud count and spacing rather than the wheel’s appearance.

Once the pattern matches, look at how the wheel sits on the hub face. Clean any rust or debris from the hub before mounting, since trapped grit can cause the wheel to wobble. Then check the lug nut seat style against the wheel’s seat, because a mismatched seat can loosen during driving even when the bolt count is correct.

  • Stud count and spacing confirmed on the hub
  • Hub face cleaned before mounting
  • Lug seat style matched to the wheel
  • Tire fitted and balanced after mounting

Specifications

Brand Method Race Wheels
Part number MRWMR30678516500
Series MR306 Mesh
Style Mesh
Finish Black (matte)
Construction Aluminum
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 6 on 135
Center bore 94
Offset 0
Backspacing 4.75
Lip bolts 13mm decorative polished, replaceable

Vehicle fitment

This wheel has no named vehicle; its entry is Universal Fit. Compare the 6 on 135 bolt pattern, 94 center bore and zero offset with your hub and clearance first.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm the 6 on 135 bolt count before anything else, since a 5 on 5 hub will not take this wheel. Check the lug seat style before mounting. The lip bolts are decorative, not mounting hardware.

What’s included

The black center cap comes with the wheel.

Not included: A tire must be added separately to complete the assembly.

SKU: MRWMR30678516500 Categories: ,

Questions & Answers

Will this 6 on 135 wheel fit a 5 on 5 hub?

No. A 6 on 135 pattern does not match a 5 on 5 hub, so the bolt count has to agree. Match the bolt pattern, 94 center bore and 0 offset to your vehicle before selecting this size.

What is the part number and size?

The part number is MRWMR30678516500. It is a 17x8.5 MR306 Mesh wheel in matte black aluminum, with a 17 inch diameter and an 8.5 inch width, and it carries a 6 on 135 bolt pattern.

Is fitment specific to any vehicle?

No vehicle is named for this wheel. It is a Universal Fit entry, and the MR306 line suits most trucks, Jeeps and SUVs in sizes from 16 to 20 inches, so the 6 on 135 bolt pattern decides suitability.

What are the signs that a mounted wheel is not seated correctly?

Look for a vibration that changes with speed, lug nuts that back off after a short drive, or a wheel that appears to sit off-center on the hub. Stop, recheck the seat and tightening, and do not drive until the wheel sits flush.
