Overview

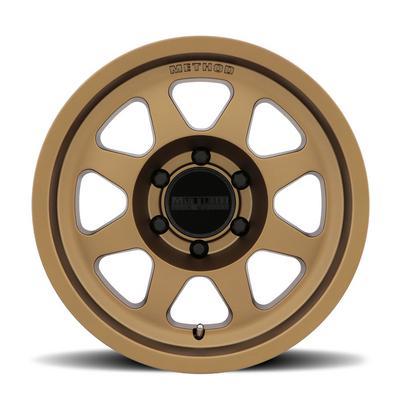

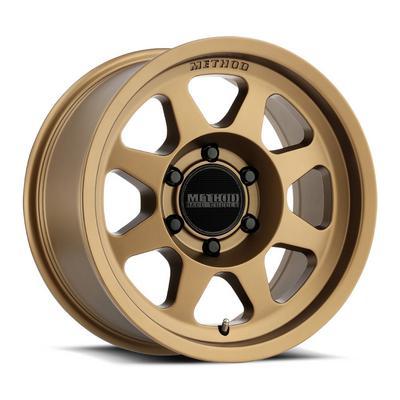

Method’s 701 Trail Series 17×8.5 wheel in Bronze, part number MRWMR70178587900, is an aluminum off-road wheel with an 8 on 170 bolt pattern and a 131 center bore. It is a windowed style with an offset of 0 and a backspacing of 4.75, and Method groups it under universal fit, which makes hub measurements the first thing to check.

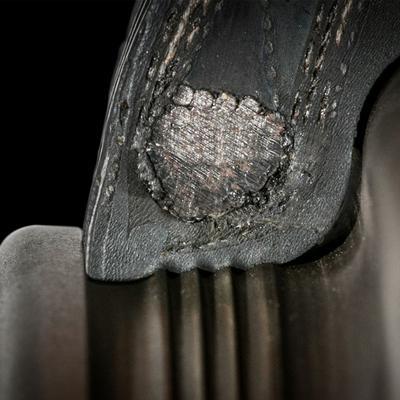

The wheel is one-piece cast 356 aluminum with T6 heat treatment. Its patent pending Bead Grip technology is designed to engage the tire bead seat, so the tire keeps grip at lower air pressures. A reinforced inner lip from race wheel design and a safety hump on both bead seats are also built in, and Method says those features stabilize the tire and guard against de-beading. Method reports finite element analysis and field tests guided the design toward less weight and more strength.
Key features
- Bronze windowed wheel with an 8 on 170 bolt pattern.
- One-piece cast 356 aluminum, T6 heat treated.
- Bead Grip design (patent pending) that helps the tire hold grip at lower pressures.
- Reinforced inner lip borrowed from race wheel design.
- Safety humps on the inner and outer bead seat.
- Developed with finite element analysis and field tests.
Tire pairing for an 8-lug wheel
Tire load rating matters as much as tire size on any wheel, so choose a tire built for the weight your vehicle carries. A stiffer sidewall helps the bead stay seated at trail pressures and gives the rim better protection from hard landings.
Bead Grip works with the bead seat, so the tire you choose should have a bead that seats well on this rim. Once mounted, check the tire’s position on the bead seat after airing down and back up, and look for uneven wear, which can point to alignment or pressure problems. Balance the tire and wheel together before the first trail run, since a balanced assembly reduces vibration at speed on washboard roads.
- Match tire load rating to vehicle weight
- Check bead seating after airing down
- Balance tire and wheel together
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178587900 |
| Series | 701 Trail Series (MR701 Bead Grip) |
| Wheel diameter | 17 Inches |
| Wheel width | 8.5 Inches |
| Bolt pattern | 8 on 170 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treatment |
| Style | Windowed |
| Finish | Bronze |
Vehicle fitment
No vehicle, year or chassis is named for this wheel. The universal fit label does not confirm a match to any truck or SUV, so check the 8 on 170 bolt pattern and 131 center bore against the hub first.
Compare bolt pattern, center bore and offset with your vehicle’s hub specifications. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Make sure the 8 on 170 pattern and 131 center bore match the hub before any mounting work. Bead Grip is designed for lower tire pressures, so set pressure for the tire, terrain and load you run, and check wheel clearance once the tire is fitted.
What’s included
A single Bronze Method Race Wheels 701 Trail Series wheel.
Not included: A tire, lug nuts, valve stems and center caps are separate items you will need to add.
