Overview

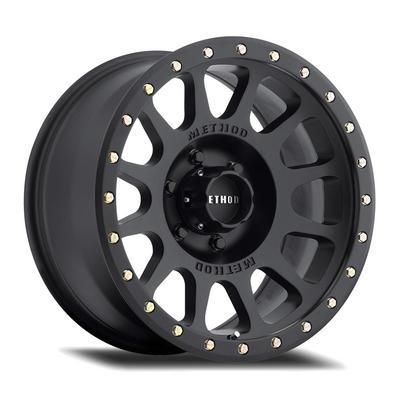

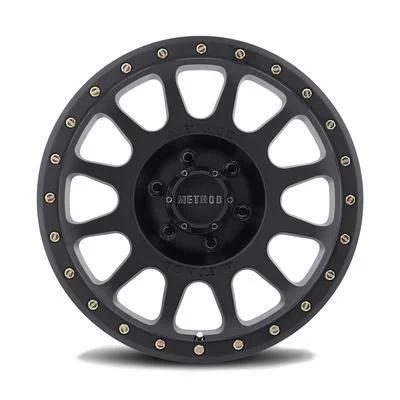

The Method Race Wheels MR305 NV 17×8.5 wheel, part number MRWMR30578580500, is a 17-inch aluminum wheel in Matte Black with an 8 on 6.5 bolt pattern. It has a windowed face, which means the face has cutouts that show the inner barrel.
The MR305 NV wheel is built to be lighter while staying strong for off-road use. Offset 0 and backspacing 4.75 set how the wheel sits in the fender and how much room sits behind the mounting face. Compare the bolt pattern and center bore with your hub first.
Key features
- Windowed face, MR305 NV series
- Aluminum construction
- 17×8.5 size
- 8 on 6.5 bolt pattern and 131 center bore
- Matte Black finish
- Reduced weight with increased strength
Clearance and offset basics
Clearance is the main concern with an offset-based wheel. Backspacing shows how much inner barrel space exists behind the mounting face, and that space decides whether a brake caliper or control arm can sit cleanly. Offset also changes steering geometry, so a move to a different wheel position can change how the vehicle feels at the wheel.
Before driving, turn the steering to full lock and cycle the suspension slowly. Watch the tire against the fender liner and the inner barrel, and check brake lines and wiring near the wheel face. If rubbing appears, adjust the tire size or wheel position rather than trimming parts blindly.
- Measure caliper clearance with the tire installed
- Check fender liners after the first off-road run
- Recheck lug torque after new wheels are mounted
- Keep the hub face clean and free of rust before mounting
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30578580500 |
| Series | MR305 NV |
| Style | Windowed |
| Construction | Aluminum |
| Diameter | 17 inches |
| Width | 8.5 inches |
| Bolt pattern | 8 on 6.5 |
| Center bore | 131 |
| Offset | 0 |
| Backspacing | 4.75 |
| Finish | Matte Black |
Vehicle fitment
No vehicle is confirmed for this wheel. Check the hub’s dimensions before mounting, and verify your vehicle’s year, model and trim before buying.
Measure your hub’s bolt pattern and center bore, since those dimensions decide whether the wheel mounts at all. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm the 8 on 6.5 bolt pattern and 131 center bore match your hub before the wheel goes on. The 4.75 backspacing sets how far the inner barrel reaches toward the brake and suspension, so check clearance before driving.
What’s included
Check whether lug nuts, valve stems or center caps are part of your order before installation.
