Overview

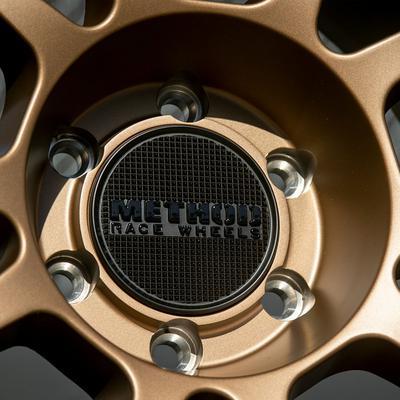

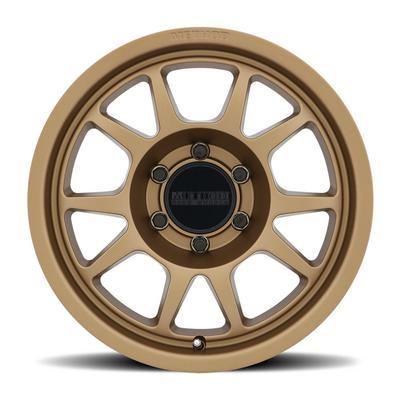

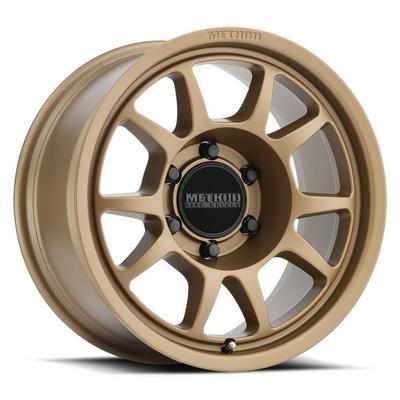

The Method Race Wheels 702 Series 17×8.5 in Bronze, part number MRWMR70278560900, is an aluminum spoke wheel that is 17 inches in diameter and 8.5 inches wide, drilled for a 6 on 5.5 bolt pattern. It belongs to the MR702 Bead Grip series.

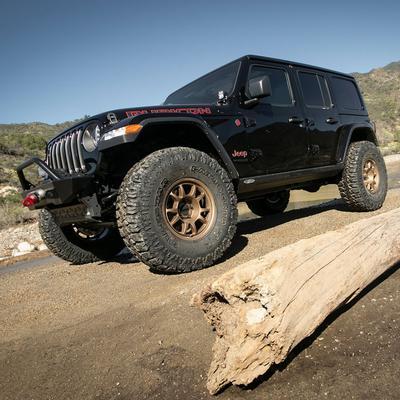

Built for off-road use, this wheel was developed with finite element analysis and field tests. The design aims for lower weight and higher strength. Check the 106 center bore and 4.75 backspacing against your vehicle before ordering.
Key features
- Aluminum construction that the brand developed to minimize weight and increase strength
- Spoke style in a bronze finish

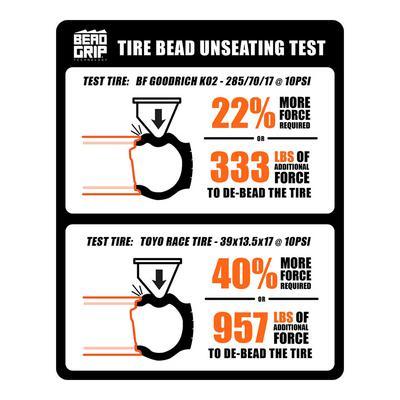

- MR702 Bead Grip series design
- Engineering verified through Finite Element Analysis and field tests
- 17-inch diameter with an 8.5-inch width
Signs a wheel needs replacing
Wheels take a lot of punishment on rough ground, and damage is not always obvious at a glance. Check the rim lip for bends or flat spots, which can cause slow air leaks or tire bead problems. Look at the spoke junctions and the hub face for cracks, since these points carry most of the stress.
Vibration that appears only at certain speeds can point to a bent wheel, a loose lug nut or a tire problem. Rotate the wheel and tire slowly and watch the rim for runout. A wheel that wobbles noticeably should be inspected before continuing to drive on it.
Bronze finishes show scratches and oxidation, but cosmetic wear alone does not mean the wheel is unsafe. Structural damage matters more. If a crack, deep dent or repeated bend appears, replace the wheel rather than attempting a repair.
- Check the rim lip for bends
- Look for cracks at spoke junctions
- Watch for vibration that changes with speed
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70278560900 |
| Series | MR702 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Offset | 0 |
| Center bore | 106 |
| Backspacing | 4.75 |
| Style | Spoke |
| Finish | Bronze |
| Construction | Aluminum |
Vehicle fitment
No vehicle is named for this wheel, and the fitment entry reads Universal Fit only. Match the 6 on 5.5 bolt pattern and the 106 center bore to your hub, and check backspacing against tire and suspension clearance.
Wheels in the MR702 line with a 6 on 135 pattern are separate part numbers. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The 106 center bore must suit the hub, and a bore that does not fit will not center the wheel. Fasteners matched to the 6 on 5.5 pattern should be used, with torque taken from the vehicle service data.
What’s included
This item covers the single bronze wheel. Check the package contents against your installation before starting.
