  • Method Race Wheels MR316 spoke wheel, 17 x 8.5 inches, titanium finish
  • 6 on 135 bolt pattern, center bore 87, offset 0, backspacing 4.75
  • Aluminum construction, part number MRWMR31678516800
  • No specific vehicle is confirmed for this wheel

Description

Overview

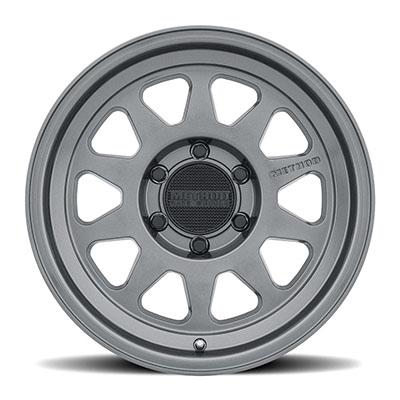

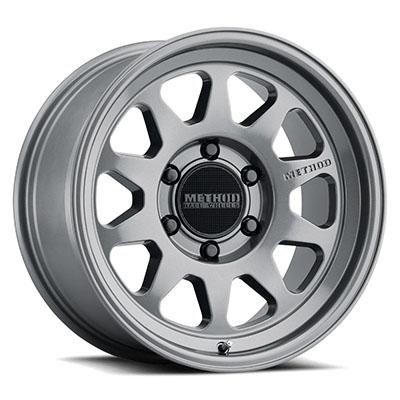

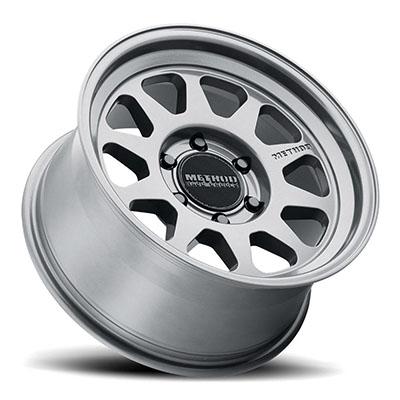

Titanium Method Race Wheels MR316 in 17×8.5, built from aluminum with a 6 on 135 bolt pattern. Part number MRWMR31678516800 identifies it, and the listed figures are an 87 center bore, 0 offset and 4.75 backspacing.

Method Race Wheels was founded to serve off-road racers, and it designs each wheel around its intended use. The company credits Finite Element Analysis and field testing with the MR316 design, which it describes as lighter, stronger and faster.

Key features

  • Titanium finish on a spoke wheel
  • Aluminum body, 17-inch diameter, 8.5-inch width
  • 6 on 135 bolt pattern and 87 center bore
  • Zero offset with 4.75 backspacing
  • Design credited to Finite Element Analysis and field testing
  • Series designation MR316

Choosing the right setup

Hub-centric fit depends on the center bore matching the hub diameter. When the bore is larger than the hub, hub-centric rings can center the wheel so the lug nuts carry the load rather than the bolts alone. Choose rings made for the specific bore and hub size, and avoid stacking spacers that change the wheel position.

Tire size and lug nut type also matter. Seats for conical nuts and ball nuts differ, so match the nut style to the wheel seat before mounting. Related parts are often replaced together, such as lug nuts, hub rings and valve stems, so check them at the same time. Heavier wheels can also change ride and braking feel, which is worth considering before any upgrade.

Specifications

Brand Method Race Wheels
Part number MRWMR31678516800
Series MR316
Style Spoke
Finish Titanium
Construction Aluminum
Wheel diameter 17 inches
Wheel width 8.5 inches
Bolt pattern 6 on 135
Center bore 87
Offset 0
Backspacing 4.75
Fitment Universal Fit

Vehicle fitment

The brand gives no vehicle for this wheel and marks it as universal fit. Use the bolt pattern, center bore, offset and backspacing to judge suitability, measured against your vehicle’s manufacturer data.

No vehicle is confirmed for this wheel. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Check the 87 center bore and 6 on 135 bolt pattern against your hub before mounting the titanium wheel.

What’s included

No accessories are named with this wheel.

Not included: A tire is not supplied with the wheel and needs to be arranged separately.

SKU: MRWMR31678516800 Categories: ,

Questions & Answers

What size and finish is part MRWMR31678516800?

It is a 17x8.5 wheel in titanium finish, with aluminum construction and a spoke design. The bolt pattern is 6 on 135 and the center bore is 87.

Is this wheel designed for a particular vehicle?

No vehicle is confirmed for this wheel. Match the bolt pattern and center bore to your vehicle before deciding on it.

What does the brand say about how the wheel was developed?

The MR316 was developed using Finite Element Analysis and field testing, with a design focus on lower weight and higher strength.

Are hub-centric rings needed with this wheel?

They depend on whether the center bore is larger than your hub. If it is, rings fill the gap and center the wheel. If the bore matches the hub, no rings are needed. Confirm the hub size before ordering.
