Overview

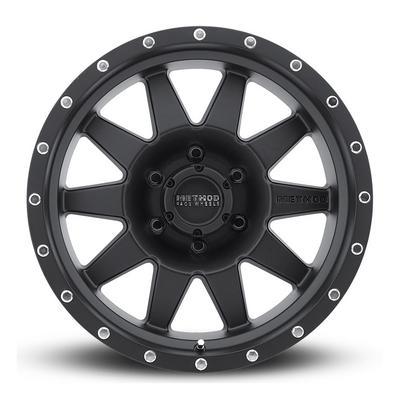

The Method Race Wheels 301 The Standard 17×8.5 in matte black is a 17-inch aluminum spoke wheel, part number MRWMR30178560500, with a 6 on 5.5 bolt pattern and a 108 center bore. Zero offset and 4.75 backspacing set the wheel within the MR301 The Standard series.
The MR301 line is Method’s wheel for off-road racing. The brand says each design is engineered for its intended use and checked through Finite Element Analysis and field tests. Lighter weight and greater strength are the stated goals, and no specific load or weight figures are given.
Key features
- 17-inch diameter and 8.5-inch width
- Aluminum spoke construction
- 6 on 5.5 bolt pattern with a 108 center bore
- Offset 0 and backspacing 4.75
- Matte black finish.
- Engineering process based on Finite Element Analysis and field testing
Hub fit and clearance
Hub-centric fit is the first check for any wheel. The center bore should match the hub so the wheel sits centered, and a larger bore may need a ring to fill the gap. Lug nuts clamp the wheel but do not center it, so a poor center fit can cause vibration even when the bolts are tight.
Zero offset places the mounting face at the wheel’s centerline. That moves the tire evenly between the fenders compared with a positive or negative offset, which changes inner clearance to the suspension and brake calipers. Check that the tires you plan to use clear the fender edge at full lock and at full suspension travel.
Torque lugs in a star pattern after seating, and recheck after a short drive. Hardware that does not seat fully against the wheel can loosen, so match lug seats to the wheel before tightening.
- Check the hub bore against the wheel bore
- Test the steering sweep for rubbing
- Confirm the lug seat style
- Recheck torque after the first drive
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR30178560500 |
| Series | MR301 The Standard |
| Diameter | 17 inches |
| Width | 8.5 inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 108 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | Aluminum |
| Style | Spoke |
| Finish | Matte black |
| Fitment field | Universal Fit, no vehicles named |
Vehicle fitment
No make, model or year is tied to this wheel, so fit is not confirmed. Use the 6 on 5.5 bolt pattern, 108 center bore, 0 offset and 4.75 backspacing to confirm a match before choosing this wheel.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Because the center bore is 108, check whether a hub-centric ring is needed for your hub before tightening the lugs. A mismatched bore can leave the wheel off-center and cause vibration.
What’s included
This item covers one wheel.
Not included: Confirm which lug nuts, center caps and tires you need before mounting.
