Method Race Wheels MR701, 17x8.5 with 6 on 135 Bolt Pattern – Bahia Blue – MR70178516600

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels MR701 17×8.5 aluminum wheel, part MRWMR70178516600
  • 6 on 135 bolt pattern, 87 center bore, 0 offset
  • Bahia Blue finish, windowed style, MR701 Bead Grip series
  • Universal fit; no vehicle is named

Description

Overview

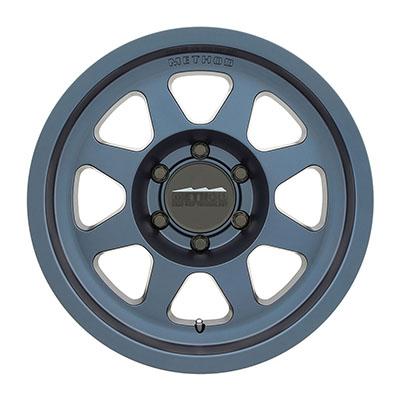

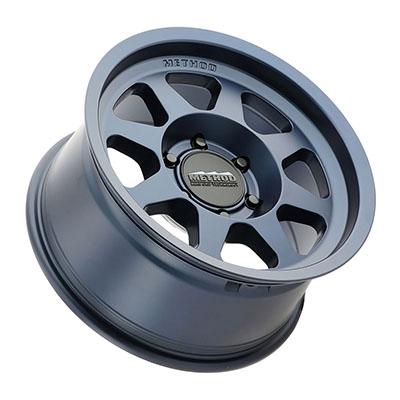

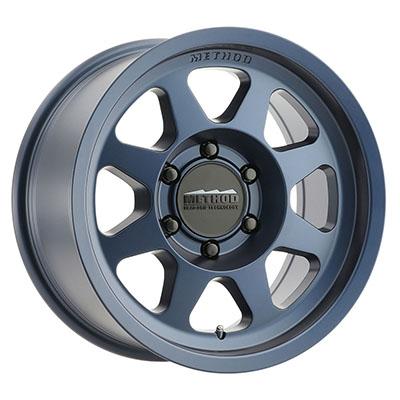

The Method Race Wheels MR701 17×8.5 in Bahia Blue, part number MRWMR70178516600, is a 17-inch aluminum off-road wheel, 8.5 inches wide, with a 6 on 135 bolt pattern. It is a universal fit wheel, so no specific year, make or model is named.

The MR701 is part of the Bead Grip series with a windowed design. Method Race Wheels was created to serve off-road racing, and each wheel is engineered for its intended use through finite element analysis and field testing. The design aims for less weight with more strength. Because a wheel must match your hub, the bolt pattern, center bore and offset decide whether this model suits a given vehicle.

Key features

  • 17-inch diameter and 8.5-inch width in aluminum
  • Windowed style in a Bahia Blue finish
  • 6 on 135 bolt pattern with an 87 center bore
  • Offset of 0 and backspacing of 4.75 as given
  • MR701 Bead Grip series
  • Engineered through finite element analysis and field tests

Measuring your hub first

Matching a wheel to a hub starts with three measurements: the bolt pattern, the center bore and the offset. Measure the bolt circle across lug holes, and check the hub’s centering diameter to see whether the bore suits. A bore that is too large can be fitted with hub-centric rings, while one that is too small will not seat, so measure before ordering.

Offset controls where the wheel sits relative to the fender and brake caliper. Once the bolt pattern and bore are confirmed, compare the offset and backspacing with clearance at full lock. Keep a notebook of the vehicle’s measurements, since the numbers are useful when comparing options or choosing a different tire later.

  • Measure lug to lug across the bolt circle
  • Check hub centering diameter against center bore
  • Compare offset with fender and caliper space
  • Write down measurements before shopping

Specifications

Brand Method Race Wheels
Part number MRWMR70178516600
Wheel diameter 17 inches
Wheel width 8.5 inches
Offset 0
Center bore 87
Backspacing 4.75
Bolt pattern 6 on 135
Finish Bahia Blue
Style Windowed
Series MR701 Bead Grip
Construction Aluminum

Vehicle fitment

No vehicle is named for this wheel. It is a universal fit design, so the 6 on 135 bolt pattern, 87 center bore, 0 offset and 4.75 backspacing decide whether it matches your hub. Offset and backspacing change how the wheel sits against the fender and brake caliper, so check those figures before choosing a tire.

Wheels with other bolt patterns or center bores will not match this specification. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Confirm lug seat type, load rating and whether lug nuts or center caps come with the wheel before mounting. Test-fit the wheel and check brake caliper clearance before mounting a tire.

What’s included

This entry is for the wheel itself. Check the package contents against your installation before starting.

Not included: Check whether tires, lug nuts and center caps are needed for your installation and obtain them separately.

SKU: MRWMR70178516600 Categories: ,

Questions & Answers

Will the Method Race Wheels MR701 17x8.5 fit my vehicle?

No vehicle is named for this wheel, so fitment must be confirmed by you. Compare the 6 on 135 bolt pattern, 87 center bore, 0 offset and 4.75 backspacing with your hub and brake clearance, then confirm your vehicle's year, model and trim before ordering.

What bolt pattern and center bore does part MRWMR70178516600 have?

It has a 6 on 135 bolt pattern and an 87 center bore. Those two numbers must match your hub exactly, and no vehicle is named to check against, so measure your hub before ordering.

What finish and series is the MR701 17x8.5 in?

The finish is Bahia Blue, and the wheel belongs to the MR701 Bead Grip series with aluminum construction. It is a windowed design built for off-road use.

How do I measure a hub's centering diameter?

Use calipers across the hub's raised centering ring, not the lug holes, and compare the reading with the wheel's center bore. Measure in two places to check for a worn or uneven hub before mounting, and clean the hub face first so the reading is accurate.
