Overview

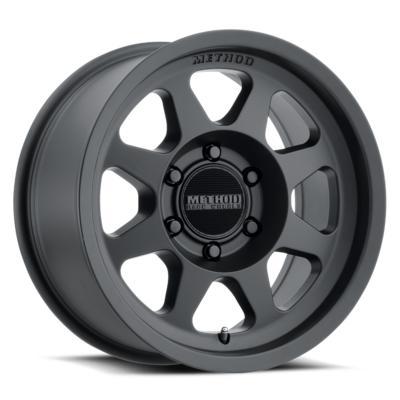

Method Race Wheels’ 701 Trail Series 18×9 in Matte Black, part number MRWMR70189060518, is an off-road aluminum wheel built for a 6 on 5.5 bolt pattern. Listed specs include a 106 center bore, an 18 offset and 5.75 backspacing, and the windowed style belongs to the MR701 Bead Grip series.
The wheel is cast as one piece from 356 aluminum and heat treated to T6. Method’s patent-pending Bead Grip feature engages the tire bead seat to add grip when lower pressures are run, and a reinforced inner lip taken from race wheel design sits inside the bead area. Safety humps on the inner and outer bead seats help keep the tire from de-beading.
Key features
- Bead Grip technology, patent pending, for grip at the tire bead seat
- Cast in one piece from 356 aluminum with T6 heat treatment
- Reinforced inner lip inherited from race wheel design
- Humps on the inner and outer bead seats for tire stability
- Windowed styling in Matte Black
- Method reports finite element analysis and field tests were used to save weight and add strength
Trail wheel dimensions and hubs
A 6 on 5.5 pattern is a six-hole layout, and it is less common than five-hole patterns, so hub options can be limited. Confirm that aftermarket hubs and studs match the bolt count and bore before buying. A 106 center bore that is too small will not seat, while one that is too large should be addressed with a properly sized centering ring.
Wheel choice also affects how the truck handles on loose ground. Heavier wheels add unsprung weight, while a lighter build can help suspension respond over rocks. Choose a tire width that suits the rim and check that the sidewall has enough strength for the load you plan to carry.
- Verify bolt count and bore before buying
- Use a centering ring only if the bore is larger than the hub
- Confirm load rating of the tire against the rim
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70189060518 |
| Series | MR701 Bead Grip |
| Style | Windowed |
| Finish | Matte Black |
| Construction | One-piece cast 356 aluminum, T6 heat treated |
| Wheel diameter | 18 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 6 on 5.5 |
| Center bore | 106 |
| Offset | 18 |
| Backspacing | 5.75 |
Vehicle fitment
No vehicle, year, make, model or chassis is attached, and the fitment is marked Universal Fit. Compare the 6 on 5.5 pattern and 106 center bore with your hub before choosing this wheel.
Bolt count and center bore must both match the hub before this wheel is considered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Confirm that the 106 center bore and 6 on 5.5 pattern match the hub before mounting. Because the offset is 18, check that the wheel clears brakes and suspension components during a test fit.
What’s included
Tires and lug nuts may need to be sourced separately, so review the package before ordering.
Not included: Valve stems, tires and lug nuts need to be planned for separately.
