Overview

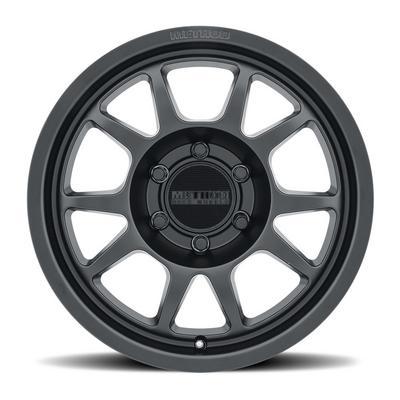

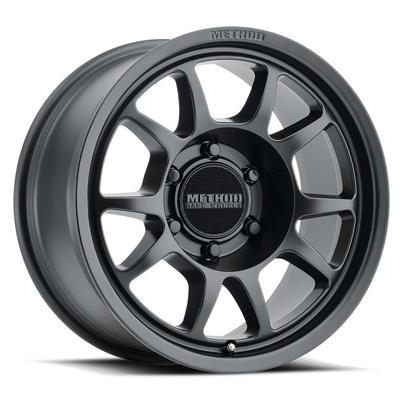

The Method Race Wheels 702 Series 16×8 wheel, part MRWMR70268059500, is a spoke-style aluminum wheel in Matte Black with a 5 on 6.5 bolt pattern. It sits in the MR702 Bead Grip series and measures 16 inches across and 8 inches wide.
The wheel was developed with finite element analysis and field testing, with the aim of reducing weight while adding strength. Its 0 offset, 114 center bore and 4.5 backspacing make hub and clearance checks important before mounting.
Key features
- Spoke design in a Matte Black finish
- Aluminum construction
- 5 on 6.5 bolt pattern
- Part of the MR702 Bead Grip series
- Designed for lower weight with higher strength.
Spoke wheel care and inspection
Spoke wheels collect brake dust and road grime in the gaps between spokes, which can hide early cracks. Clean the spoke roots and the back of the spokes during regular washing, and use a soft brush to reach the recesses. Dry the wheel fully before storage so moisture does not sit against the aluminum.
Inspect the spoke roots and the hub face after hard use. Look for hairline cracks, bends and any sign of air loss at the bead. A wheel that has taken a heavy impact should be checked before going back on the trail, even if it still holds air.
- Clean spoke roots and gaps after muddy runs
- Look for hairline cracks at spoke roots
- Recheck lug torque after the first few drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70268059500 |
| Series | MR702 Bead Grip |
| Wheel diameter | 16 inches |
| Wheel width | 8 inches |
| Offset | 0 |
| Center bore | 114 |
| Backspacing | 4.5 |
| Bolt pattern | 5 on 6.5 |
| Style | Spoke |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
No vehicle is attached to this wheel, and fitment is marked universal. Match the 5 on 6.5 bolt pattern, 114 center bore and 0 offset to your hub and clearance before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check the 5 on 6.5 bolt pattern and 114 center bore against your hub before mounting. Backspacing of 4.5 and an offset of 0 set how far the wheel sits in the fender, so measure brake and suspension clearance first.
What’s included
Tires, lug nuts and center caps are not part of this wheel, so plan for them separately.
