Method Race Wheels 701 Trail Series, 17x8.5 with 6 on 135 Bolt Pattern – Bronze – MR70178516900

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Bronze Method Race Wheels 701 Trail Series 17×8.5, part number MRWMR70178516900
  • 6 on 135 bolt pattern with a center bore of 87
  • Offset 0 and backspacing 4.75 for sizing the wheel.
  • One-piece cast 356 aluminum, T6 heat treated
  • No vehicle is tied to this wheel, so check hub match before choosing it.

Description

Overview

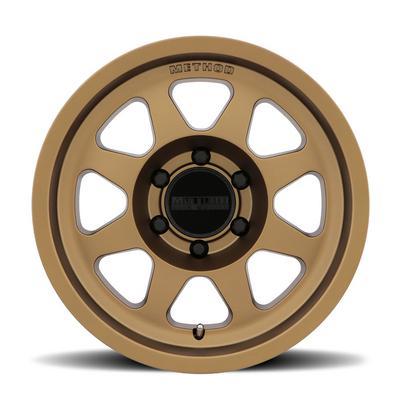

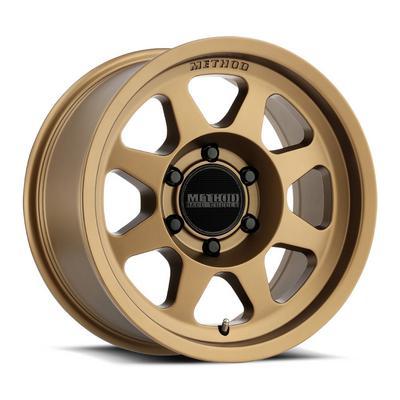

Part MRWMR70178516900 is a Bronze Method Race Wheels 701 Trail Series wheel measuring 17×8.5. Its bolt pattern is 6 on 135, the center bore is 87, the offset is 0 and the backspacing is 4.75, which together determine whether the wheel suits a given hub.

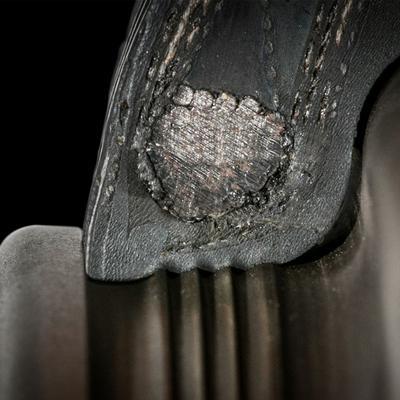

The wheels were developed for off-road racing and refined through finite element analysis studies and field trials. The aluminum body is one-piece cast 356 with T6 heat treatment. Bead Grip, patent pending, engages the tire bead seat for extra grip when the tire runs at low pressure. A reinforced inner lip from race wheel engineering adds rim strength, and both bead seats carry a safety hump that keeps the tire stable and resists de-beading.

Key features

  • One-piece cast 356 aluminum
  • T6 heat treatment
  • Patent pending Bead Grip
  • Reinforced inner lip from race wheel design
  • Safety humps on both bead seats
  • Windowed style with Bronze finish

Matching a set of four

Four wheels that match in bolt pattern, center bore, offset and backspacing are easier to fit and balance than a mixed set. Mixing offsets can change how the tires sit on the hub and the clearance on each corner, which becomes obvious at full steering lock. A spare should match the set in every hub measurement it needs to fit.

Keep spares in mind when choosing a wheel for a trail rig. A spare in the same finish is easier to match when the original gets scraped, and a mismatched spare can look like a repair rather than a plan. Check that the spare fits the same carrier, bed or mount as the rest of the gear before buying.

  • Match offset and backspacing across all four
  • Balance each wheel and tire
  • Check spare fit in its mount

Specifications

Brand Method Race Wheels
Part number MRWMR70178516900
Series 701 Trail Series, MR701 Bead Grip
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 6 on 135
Center bore 87
Offset 0
Backspacing 4.75
Style Windowed
Construction Aluminum, one-piece cast 356, T6 heat treatment
Finish Bronze

Vehicle fitment

This bronze wheel carries no vehicle, year or chassis. Match the 6 on 135 bolt pattern, 87 center bore and 0 offset to your hub, then compare with your vehicle’s wheel requirements. Confirm your vehicle’s year, model and trim before ordering.

Hubs drilled for a different pattern, even another six-lug one, will not accept this wheel.

Installation notes

Confirm the 87 center bore clears the hub before the wheel goes on. Where the hub is larger, a hub-centric ring fills the gap. Lug nut torque should match your vehicle’s torque requirement, and the nuts should be rechecked after the first few miles of driving.

What’s included

One Bronze 17×8.5 wheel is the item described.

Not included: This package covers one Bronze 17×8.5 wheel.

SKU: MRWMR70178516900 Categories: ,

Questions & Answers

What bolt pattern does part MRWMR70178516900 use?

It has a 6 on 135 bolt pattern, a center bore of 87, an offset of 0 and a backspacing of 4.75. Those hub measurements must match the vehicle before the wheel is mounted. The finish is Bronze.

Does the bronze wheel fit my truck?

No vehicle or year range is tied to this wheel, so fit is not confirmed. Check your hub against the 6 on 135 pattern and 87 center bore, and compare with your model's wheel requirements.

What is the Bead Grip feature?

Bead Grip is a patent pending technology that engages the tire bead seat for extra grip at lower air pressures. The reinforced inner lip and safety humps are separate features meant to hold the tire on the rim.

What material is the wheel made from?

The wheel is aluminum, one-piece cast from 356 and heat treated to T6. Its windowed style and Bronze finish complete the wheel, which is built for off-road trail use.

Can I mix wheels of different sizes on one vehicle?

It is generally not advised. Different widths or offsets change how each corner fits the fender and brakes, and they can change how the axle carries load. Keep all four wheels matched in every hub measurement and tire size.
