Overview

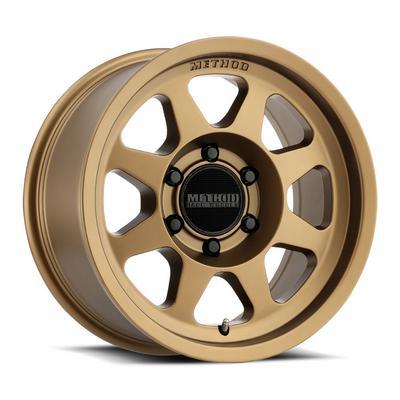

The Method Race Wheels 701 Trail Series 17×8.5 wheel in Bronze, part number MRWMR70178558900, is a 17-inch diameter, 8.5-inch wide aluminum wheel for off-road trail vehicles. It has a 5 on 150 bolt pattern, a 111 center bore, 0 offset and 4.75 backspacing.
Made as a one-piece cast 356 aluminum wheel with T6 heat treatment, it carries the MR701 Bead Grip design. That design helps the tire bead hold its place on the bead seat when pressures run low on rough terrain. The wheel is Universal Fit, so confirming the hub and bolt-pattern match falls to the buyer. It is a windowed Bronze wheel with a reinforced inner lip.
Key features
- One-piece cast 356 aluminum with T6 heat treatment

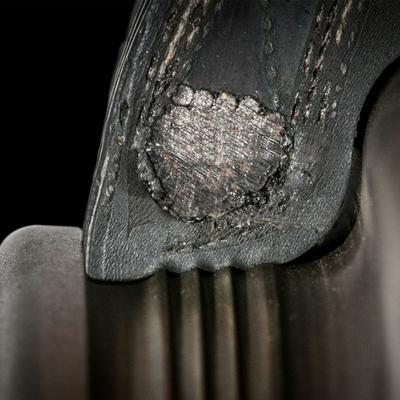

- Bead Grip technology that grips the tire bead seat at reduced tire pressures
- Reinforced inner lip taken from Method’s race wheel design
- Safety hump on the inner and outer bead seat that helps stabilize the tire and prevent de-beading
- Finite Element Analysis and field testing used in development.
- Its design targets lower weight with strength kept in place.
- Windowed style with Bronze finish
Brake and fender clearance
A zero offset places the mounting face at the centerline of the wheel, so more of the wheel sits outward and the tire can reach closer to the fender and steering components. On a trail rig, extra travel and body roll can close that gap, so clearance should be tested at full compression and full steering lock, not only with the truck parked.
Brake calipers are the other common contact point, especially when the rotor is large or the wheel’s inner face is close to the caliper. Look for rub marks on the inner lip after a few test drives, and keep the wheel’s backspacing in mind when considering spacers or wheel swaps. Small changes can make a big difference, so test one wheel first.
- Test at full steering lock
- Check the caliper through the spokes
- Look for rub marks on the inner lip
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR70178558900 |
| Series | 701 Trail Series, MR701 Bead Grip |
| Wheel diameter | 17 inches |
| Wheel width | 8.5 inches |
| Bolt pattern | 5 on 150 |
| Center bore | 111 |
| Offset | 0 |
| Backspacing | 4.75 |
| Construction | One-piece cast 356 aluminum, T6 heat treated |
| Style | Windowed |
| Finish | Bronze |
Vehicle fitment
This wheel is Universal Fit, so it is not made for one make, model or year. Fit depends on the 5 on 150 bolt pattern, 111 center bore, 0 offset and 4.75 backspacing matching your hub, plus clearance for brakes and suspension.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Zero offset and 4.75 backspacing place the wheel’s mounting face and rear lip in a specific position, so test brake caliper and fender clearance with the tire you plan to run.
What’s included
Lug nuts, center caps and valve stems may need to be sourced separately.
Not included: A tire must be sourced separately to be mounted on this wheel.
