Method Race Wheels 301 The Standard, 17x8.5 with 6 on 135 Bolt Pattern – Matte Black – MR30178516500

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 301 The Standard 17×8.5 spoke wheel in matte black
  • 6 on 135 bolt pattern with a 94 center bore
  • Offset 0 and backspacing 4.75
  • Aluminum construction, part number MRWMR30178516500
  • No vehicles named; Universal Fit per the manufacturer

Description

Overview

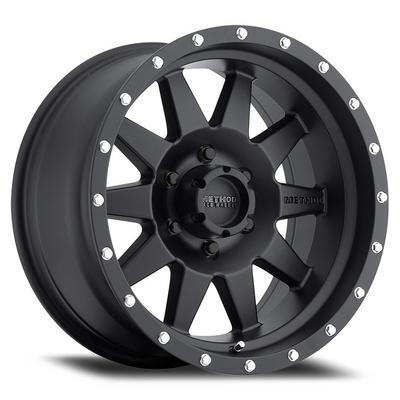

The Method Race Wheels 301 The Standard 17×8.5 is a 17-inch aluminum spoke wheel in matte black, part number MRWMR30178516500, built for a 6 on 135 bolt pattern with a 94 center bore. It belongs to the MR301 The Standard series from Method Race Wheels.

The MR301 series is designed around off-road racing rather than street driving. Each design is engineered for its job, reviewed with Finite Element Analysis and tested in the field, with a focus on reduced weight and greater strength. Zero offset and 4.75 backspacing give the wheel a centered mounting face.

Key features

  • 17-inch diameter and 8.5-inch width in aluminum
  • 6 on 135 bolt pattern
  • 94 center bore
  • Offset 0 and backspacing 4.75
  • Spoke design in matte black
  • Engineering built on Finite Element Analysis and field testing, per the brand

Hub-centric rings and bore fit

A wheel bore larger than the hub needs a hub-centric ring so the load passes through the hub rather than the lug studs. Rings are matched to the hub diameter, so measure the hub before ordering one. Lug studs alone do not center the wheel, which is why vibration can appear at speed.

Seat the wheel flat, tighten the lugs in a star pattern, and recheck them after the first drive. Inspect the mounting face and hub for corrosion or debris, since trapped dirt can push the wheel off center. Balance the tire and wheel assembly after mounting, and check for rubbing at full steering lock.

  • Measure the hub bore before buying rings
  • Clean the mounting face when swapping wheels
  • Balance the tire and wheel assembly

Specifications

Brand Method Race Wheels
Part number MRWMR30178516500
Series MR301 The Standard
Diameter 17 inches
Width 8.5 inches
Bolt pattern 6 on 135
Center bore 94
Offset 0
Backspacing 4.75
Construction Aluminum
Style Spoke
Finish Matte black
Fitment field Universal Fit, no vehicles named

Vehicle fitment

It has Universal Fit with no makes, models or years identified. Hub compatibility depends on the 6 on 135 bolt pattern, the 94 center bore and the offset, so measure those on your vehicle.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 94 center bore may be larger than some hubs, in which case a hub-centric ring is needed to center the wheel. Re-check lug seating and torque after the first drive, since a loose wheel can vibrate or lose a lug.

What’s included

The package is one wheel only.

Not included: Plan to source lug nuts, center caps and tires separately before mounting.

SKU: MRWMR30178516500 Categories: ,

Questions & Answers

Is the MRWMR30178516500 a 6 on 135 wheel?

Yes. The bolt pattern is 6 on 135, with a 94 center bore, 17 inch diameter and 8.5 inch width. Offset is 0 and backspacing is 4.75.

Does it fit my Ford or Toyota?

No make or model is identified for this wheel, so fitment to a Ford or Toyota is not confirmed. It is Universal Fit. Confirm the bolt pattern, center bore and offset against your vehicle's hub before choosing it.

Does the wheel come with lug nuts?

Lug nuts, center caps and tires are not part of this purchase, so source them separately. Check fit against your vehicle's year, model and trim first.

What material is it?

The wheel is aluminum with a spoke style and a matte black finish. Confirm its load rating and weight for your use before mounting, since no figures are shown here.

Can I run a hub-centric ring with lug studs?

Yes. A hub-centric ring fills the gap between the hub bore and the wheel bore so the hub carries the load. Lug studs still clamp the wheel, but they do not center it. Choose a ring sized to your hub and tighten lugs in a star pattern.
