Method Race Wheels 315, 17x8.5 Wheel 6 on 135 Bolt Pattern – Machined – MR31578516300

Method Race Wheels

Shop Method Race Wheels 17x8.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Method Race Wheels 315 17×8.5 machined aluminum wheel, part MRWMR31578516300
  • 6 on 135 bolt pattern with an 87 center bore
  • Windowed style with a machined finish
  • Universal fit, not tied to a specific vehicle

Description

Overview

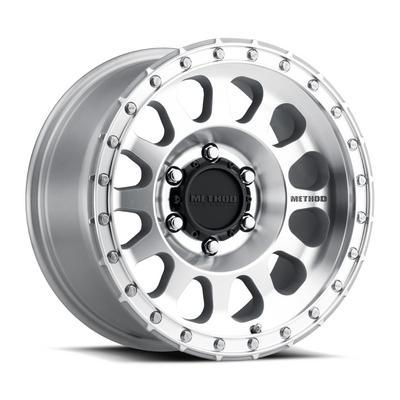

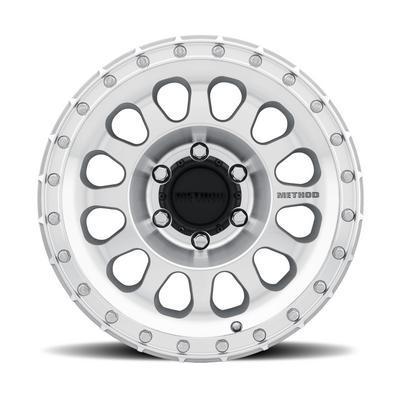

The Method Race Wheels 315 17×8.5 in Machined finish, part number MRWMR31578516300, is an aluminum wheel with a 6 on 135 bolt pattern and an 87 center bore. It has a windowed design from the MR315 series and is a universal fit wheel, not built for one make, model or year.

Method made the 315 wheel for off-road use and reports that finite element analysis and field tests guided its design. Because no individual vehicles are named, mounting depends on matching the bolt pattern, bore and backspacing to your own vehicle.

Key features

  • 17-inch diameter and 8.5-inch width
  • Machined finish on a windowed face
  • Aluminum construction
  • 6 on 135 bolt pattern with an 87 center bore
  • Zero offset and 4.75 backspacing

Wheel fit and hub matching

Wheel fit comes down to several numbers working together. The bolt pattern sets how the wheel attaches to the hub, the center bore sets how it centers, and offset and backspacing set where the wheel sits relative to the fender, brakes and suspension. A wheel that matches on bolt pattern can still rub or sit off-center if the other figures do not suit the vehicle.

Before mounting, measure the hub and compare it with the wheel’s dimensions. Check that the lug nut seat matches the wheel, because a mismatch can loosen under load. After the first drives, re-check torque and look for rub marks on the tire sidewall and inner fender.

  • Compare hub pilot diameter with the center bore
  • Test-fit with the tire you plan to run
  • Re-check lug torque after the first few drives
  • Look for rubbing on the inner fender at full steering lock

Specifications

Brand Method Race Wheels
Part number MRWMR31578516300
Series MR315
Wheel diameter 17 Inches
Wheel width 8.5 Inches
Bolt pattern 6 on 135
Center bore 87
Offset 0
Backspacing 4.75
Style Windowed
Finish Machined
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

This is a universal fit wheel, so it is not tied to a make, model or year. Confirm that the 6 on 135 pattern and 87 center bore suit your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Machined finishes can show scratches during mounting, so protect the face while fitting the wheel. The 87 center bore must match your hub. Confirm the lug nut seat type and torque requirements for your vehicle before mounting.

What’s included

This is one wheel only. Plan for tires, lug nuts and center caps to be sourced separately before mounting.

SKU: MRWMR31578516300 Categories: ,

Questions & Answers

Is the machined finish the same as the matte black version?

No. This version has a machined finish, while the matte black versions carry a different face color. Bolt pattern, center bore, offset and backspacing are otherwise listed the same on the 17x8.5 wheel.

What is the center bore and bolt pattern?

The center bore is 87 and the bolt pattern is 6 on 135. Both must line up with the hub of your vehicle. The offset is 0 and the backspacing is 4.75.

Does this Method wheel fit every truck with a 6 on 135 pattern?

Not necessarily. It is a universal fit wheel, so bolt pattern is only one factor. Compare the center bore, offset and backspacing with your vehicle's specifications before mounting.

How can I tell if a wheel needs a hub-centric ring?

A ring is usually needed when the hub is smaller than the wheel's center bore. Measure the hub's pilot diameter and compare it with the 87 center bore before mounting. A snug fit with the ring keeps the wheel centered and reduces vibration at speed.
