Overview

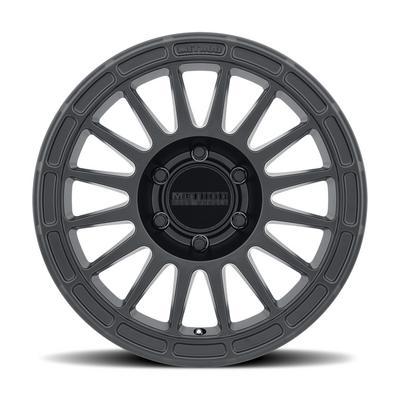

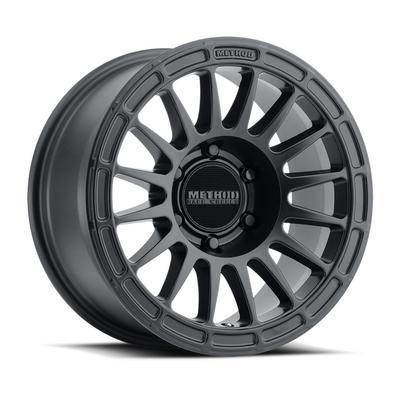

The Method Race Wheels 314 is an 18 Inches by 9 Inches aluminum spoke wheel for a 5 on 150 bolt pattern, finished in Matte Black. Part number MRWMR31489058518 identifies it in the MR314 series, a spoke line from Method Race Wheels built for off road racing.
The wheel is engineered for its intended use and checked with finite element analysis and field tests. It is a universal fit design and names no specific vehicle. Offset 18, backspacing 5.75 and center bore 111 decide whether it suits a particular hub and clearance.
Key features
- 18 Inches diameter and 9 Inches width
- 5 on 150 bolt pattern
- Center bore 111
- Offset 18 and backspacing 5.75
- Spoke style in Matte Black
- Aluminum construction
Choosing an offset
Offset is the distance from the mounting face to the wheel centerline, and it decides how far the wheel tucks under the fender. Backspacing measures the space from the mounting face to the inner lip, which decides how close the wheel sits to brake and suspension parts. The two work together, so a wheel can have a correct bolt pattern and still rub if its inner clearance is too small.
When an offset is wrong for a build, the usual fixes are a different wheel, a spacer, or a tire change. Spacers move the wheel outward but add load to the studs and change the bearing position, so they need careful sizing and checking. Re-check torque after any spacer is fitted, and avoid mixing a spacer with a tire change until the clearance is confirmed.
- Measure inner clearance before choosing a spacer
- Check stud length when a spacer is added
- Recheck torque after the first few drives
Specifications
| Brand | Method Race Wheels |
|---|---|
| Part number | MRWMR31489058518 |
| Series | MR314 |
| Style | Spoke |
| Wheel diameter | 18 Inches |
| Wheel width | 9 Inches |
| Bolt pattern | 5 on 150 |
| Center bore | 111 |
| Offset | 18 |
| Backspacing | 5.75 |
| Finish | Matte Black |
| Construction | Aluminum |
| Fitment | Universal Fit |
Vehicle fitment
It is a universal fit design, so no year, make, model or trim is confirmed. Start with the 5 on 150 hub and 111 center bore, then check offset 18 and backspacing 5.75 against the space behind the wheel.
Universal fit is a sizing label, not a confirmed fit for any specific model.
Installation notes
Begin with the 111 center bore and 5 on 150 pattern against the hub. Offset 18 and backspacing 5.75 set brake and fender clearance, so measure those before tire mounting. Confirm the lug seat type before mounting.
What’s included
One 18 Inch Matte Black spoke wheel is included.
Not included: The contents are the wheel alone, without tires, valve stems or lug nuts.
