Overview

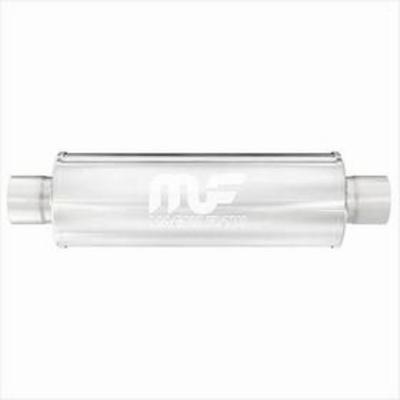

The MagnaFlow 12774 is a 5 inch satin stainless steel straight-through muffler with centered inlet and outlet tubes. MagnaFlow’s Performance line builds it from 100% stainless steel, with a lap-joint weld and an acoustical fill designed to keep the tone deep and steady.
It is a universal fit muffler, so it is not matched to a particular year, make or model. Because 5 inch tubing is large, measure your existing pipe before choosing this size.
Key features
- 5 inch inlet and outlet tubing
- Centered inlet and centered outlet placement
- Lap-joint welded 100% stainless steel body
- Perforated straight-through core wrapped in stainless mesh
- Acoustical fiber fill packed to limit sound change over time
Large-diameter exhaust considerations
A 5 inch muffler is a large component, and its size changes how the whole exhaust behaves. Big tubing can reduce backpressure, which may help at high engine speeds but can make low-speed response feel softer on smaller engines. Consider how the vehicle is used before committing to a size this big.
Clearance is the first practical question. A large body needs room under the floor and away from the axle, shocks and skid plates. Clamp points and hanger locations also change, so plan supports for the extra weight. Check the route with the vehicle raised on stands before final welding.
- Measure clearance at the axle and fuel tank with the suspension at full travel
- Use hangers sized for the added weight
- Expect more heat around the body during long runs
- Recheck clamps after the first week of driving
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | M/F12774 |
| Muffler type | Straight through |
| Material | 100% stainless steel |
| Finish | Satin stainless |
| Tube size | 5 inches inlet and outlet |
| Inlet location | Centered |
| Outlet location | Centered |
| Fitment type | Universal fit |
| Warranty | Lifetime |
Vehicle fitment
No vehicles are named for the 12774, which is marked universal fit. A 5 inch muffler is a large component, so confirm the diameter and clearance of the exhaust it will join.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Plan on cutting the existing exhaust and joining the muffler with clamps or welds. Allow clearance for the 5 inch body under the vehicle and wear eye protection when cutting.
What’s included
The package covers the muffler only. You will need your own connecting pipe, clamps and hangers.
Not included: connecting pipe, clamps and hangers.
