Overview

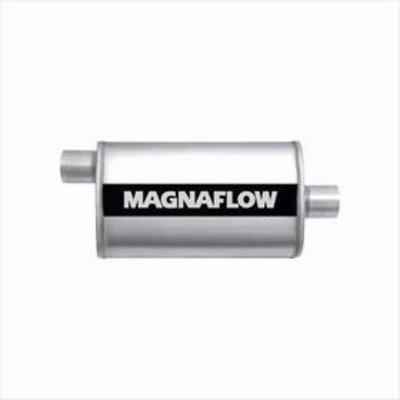

The MagnaFlow 11229 is a 3 inch satin stainless steel muffler with an offset inlet and a centered outlet. Its straight-through core is built for 3 inch exhaust systems, and MagnaFlow makes the body from 100% stainless steel with a lap-joint weld.
It is a universal fit muffler, so no particular vehicle is matched to it. Compare the 3 inch tubing and the offset inlet with your exhaust routing before choosing it, then confirm your vehicle’s year, model and trim before ordering.
Key features
- 3 inch inlet and outlet tubing
- Offset inlet and centered outlet
- Lap-joint welded 100% stainless steel body
- Perforated straight-through core with stainless mesh wrap
- Lifetime warranty backing
Three inch flow and fit
Three inch tubing moves a large volume of exhaust, which suits bigger engines and heavier loads. Because flow is generous, the sound tends to be deeper and more pronounced than with smaller pipe. Consider whether that tone suits daily driving, since more volume can also draw attention at idle and low speeds.
The offset inlet means the muffler will sit at an angle or shift in the run, so the connecting pipe may need a bend or a short offset section. Lay out the full run before cutting anything. Check clearance from the fuel tank straps, the rear axle and the crossmember, and confirm the outlet points where you want it.
- Fit the connecting pipe in sections for easier alignment
- Dry-fit every joint before tightening any clamp
- Keep heat shields clear of the new muffler body
- Check hangers for wear after the first highway drive
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | M/F11229 |
| Muffler type | Straight through |
| Material | 100% stainless steel |
| Finish | Satin stainless |
| Tube size | 3 inches inlet and outlet |
| Inlet location | Offset |
| Outlet location | Centered |
| Fitment type | Universal fit |
| Warranty | Lifetime |
Vehicle fitment
No vehicle is named for the 11229, which is marked universal fit. The offset inlet and centered outlet mean the layout must suit your piping rather than a specific model’s exhaust.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Cut and join the muffler into your existing 3 inch piping with clamps or welds, keeping the offset inlet aligned with the pipe coming from the engine. Wear eye protection while cutting.
What’s included
The package covers the muffler only. Connecting exhaust pipe, clamps and hangers are not included.
Not included: connecting exhaust pipe, clamps and hangers.
