Overview

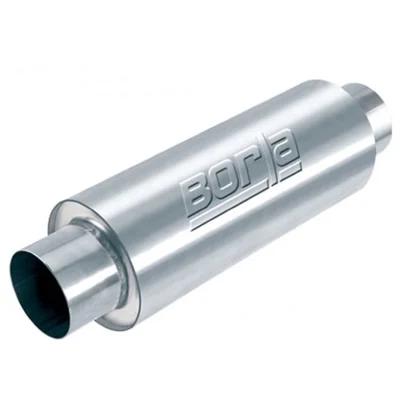

The Borla XR-1 BOR400373 is a stainless multicore racing muffler with center/center flow, a round body and 3 in. inlet and outlet connections.
Its 16 in. body length, 6.25 in. diameter and 21 in. overall length are the main measurements to compare with your exhaust layout.
Key features
- Stainless multicore construction
- Center/center flow configuration
- Round body with 3 in. inlet and outlet
- 16 in. body length and 21 in. overall length
- Intended for rotary engine equipped vehicles
Racing muffler design basics
A multicore muffler routes exhaust through several small passages rather than a single chamber, which is one reason stainless multicore designs appear in racing setups. Center/center flow runs gas through the middle of the unit, so the inlet and outlet sit on the centerline. That layout can change sound and backpressure, so it should be matched to the rest of the exhaust rather than swapped in on its own.
Stainless construction resists corrosion better than mild steel, but heat and road debris still wear joints over time. Check welds, clamp bands and hangers after each season of use. Compare overall length and body length against the space under the vehicle, since a muffler that sits too close to a fuel line or body panel can cause problems.
- Check clearance to body panels and fuel lines
- Inspect welds and clamp bands
- Match pipe diameter to the 3 in. inlet and outlet
Specifications
| Brand | Borla |
|---|---|
| Part number | BOR400373 |
| Product line | XR-1 |
| Construction | Stainless multicore |
| Flow configuration | Center/Center |
| Shape | Round |
| Inlet/Outlet | 3 in. |
| Body length | 16 in. |
| Diameter | 6.25 in. |
| Overall length | 21 in. |
| Fitment | Universal fit |
Vehicle fitment
It is a universal fit muffler, so no make, model, year or trim is matched to it. Because the design is intended for rotary engines, confirm your engine and exhaust routing before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Check that your pipe diameter and mounting position match the 3 in. inlet and outlet and the center/center flow before fitting. Clearance should be confirmed against your own exhaust layout.
What’s included
Check the package contents against your installation, including clamps, hangers and hardware, before starting.
