Overview

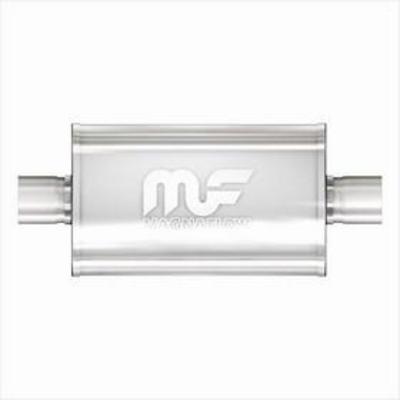

The MagnaFlow 12216 is a satin stainless steel straight-through muffler with 2.5 inch inlet and outlet tubes, both centered. The body is 100% stainless steel. The perforated core is wrapped in stainless mesh and designed for a smooth, deep tone.
The muffler is listed without vehicles and marked universal fit, so the tubing size and centered layout should be matched to your exhaust before installation.
Key features
- 2.5 inch tubing at inlet and outlet
- Centered inlet and centered outlet positions
- Mesh-wrapped perforated stainless core
- Acoustical fiber fill that MagnaFlow says is not expected to degrade sound over time
- Lifetime Warranty stated by the maker
Exhaust tone and drone
Muffler design sets how much sound energy is absorbed and how the exhaust note sounds at speed. A straight-through core keeps flow direct, which tends to produce a more open tone than a chambered design. On a daily driven vehicle, the note at cruise can matter more than the note at idle, so consider where you drive most.
Pipe diameter matters as much as the muffler itself. A 2.5 inch system is a common size, but the pipe running into the muffler and the tailpipe have to match. Mixing diameters causes restrictions and can change the sound more than the muffler does.
- Measure pipe diameter at the inlet before cutting
- Check the centered inlet and outlet against your layout
- Keep clearance from fuel lines and the floor pan
- Replace worn hangers when the new muffler is fitted
Specifications
| Brand | MagnaFlow Exhaust |
|---|---|
| Part number | M/F12216 |
| Muffler type | Straight through |
| Material | Stainless steel |
| Finish | Satin |
| Tube size | 2.5 inches inlet and outlet |
| Inlet location | Centered |
| Outlet location | Centered |
| Fitment type | Universal fit |
| Warranty | Lifetime |
Vehicle fitment
MagnaFlow marks the 12216 universal fit with no specific vehicles named. Whether it suits a given Jeep depends on exhaust layout and the 2.5 inch pipe size, so measure before installation.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Expect to cut the existing exhaust, fit the 12216 in line and secure it with clamps or welds. Keep the exhaust clear of the frame and body, and wear eye protection while cutting.
What’s included
The muffler is supplied alone, without clamps or hangers.
Not included: connecting pipe and mounting hardware.
