Overview

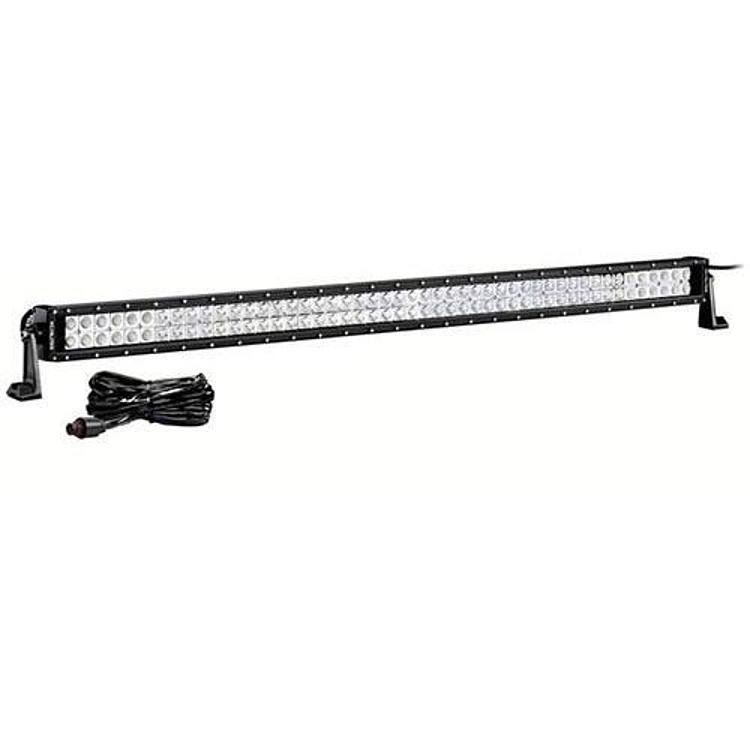

The KC HiLites 50 Inch LED Spot Light Bar, part number 338, is a 50-inch rectangular light bar with a clear lens and black housing. It is a single light that includes a harness and draws 288 watts through its C50 LED array.
The bar is part of the LED Series, a high-performance range built on current LED technology. The series is rated for a life span of up to 50,000 hours and is designed to resist dust, water, shock and vibration. The optics are designed to spread light evenly across the beam.
Key features
- 50-inch rectangular housing
- Spot light bar with clear lens
- 288 watts
- Black housing
- C50 LED array
- Harness included
Stem mount clearance and load
A long bar on a stem mount adds leverage and wind load, so the mounting point needs to be strong and free of obstructions. Check that the bar will not contact the roof, a luggage rack or a hatch when the vehicle is in motion. Vibration can loosen connections over time, so look for play in the mount after rough runs.
The bar draws heavy current, so the wiring should use a heavy-duty relay and a fused circuit. Route the cable with clips along its full length, keeping it away from heat and moving suspension parts. Remove the bar when it is not needed for off-road trips to reduce weight and wind resistance.
- Choose a strong, unobstructed mount point
- Check clearance with doors and hatches
- Remove the bar when not in use
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 338 |
| UPC | 84709003388 |
| Series | LED Series, C50 |
| Light type | LED light bar, sold as a single light |
| Size | 50 inch |
| Light shape | Rectangular |
| Power | 288 watts |
| Lens color | Clear |
| Housing | Black |
| Mounting | Stem |
| Rated life | Up to 50,000 hours. |
Vehicle fitment
The 50-inch bar is designed as a universal fit rather than for one specific vehicle. A bar this long needs a stem mount on a sturdy point with clearance for the full length, and the owner chooses that point on each vehicle.
Installation notes
At 288 watts the bar needs a heavy-duty relay and a fused circuit sized for that load. Confirm the stem mount clears the roof, bumper or bar, and check local rules on driving lights before using the bar on a road vehicle.
What’s included
The package holds one 50-inch light bar with its harness.
