Overview
The KC HiLites 5 Inch Apollo Pro Series Long Range Light Kit, model 450, is a pair of 5 inch round halogen lights with clear lenses and a 55 watt bulb each, universal fit. The Apollo Series is built around a black Polymax housing with a flat profile, and this kit is sold with two lights and a harness, mounted on a bracket with a two-axis mount for aiming.
Key features
- Long range beam pattern
- Replaceable 55 watt halogen bulb
- Optical quality glass lens and polished reflectors
- Two-axis mount for easy aiming
- Black plastic Polymax housing with a flat, sleek profile
- Clear lens
Choosing a mounting location
Long range lights are most useful when they sit high and clear of the hood, where the beam can reach past nearby brush. A bracket with a two-axis mount gives room to adjust both the tilt and the side angle, which helps when the vehicle is loaded or sits at an unusual angle.
Halogen bulbs run hot and draw more current than LEDs, so the wiring should be sized and fused to match. Keep the harness away from exhaust heat, and check the lens for cracks after trail impacts, since a damaged lens lets water and dust into the housing.
- Check hood and windshield clearance
- Keep the bracket bolts snug after rough trails
- Carry a spare bulb for trail trips
Specifications
| Brand | KC HiLites |
|---|---|
| Light shape | Round, 5 inch |
| Lens color | Clear |
| Lens | Optical quality glass |
| Housing | Black plastic (Polymax) |
| Bulb type | Halogen, 55 watt, replaceable |
| Reflectors | Polished |
| Mounting | Bracket kit, two-axis aiming |
| Sold as | Kit with two lights and harness |
| Beam pattern | Long range (Apollo Series also offered in driving, fog and flood) |
Vehicle fitment
The kit is universal fit, so it is not made for one vehicle. The Apollo Series comes in 5 and 6 inch round sizes, and this kit is the 5 inch long range version. Check the bracket fit and wiring route on your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The harness and bracket hardware are included, so the lights mount without custom fabrication. Wire the lights through a fused relay and check local rules on auxiliary lights before using them on public roads.
What’s included

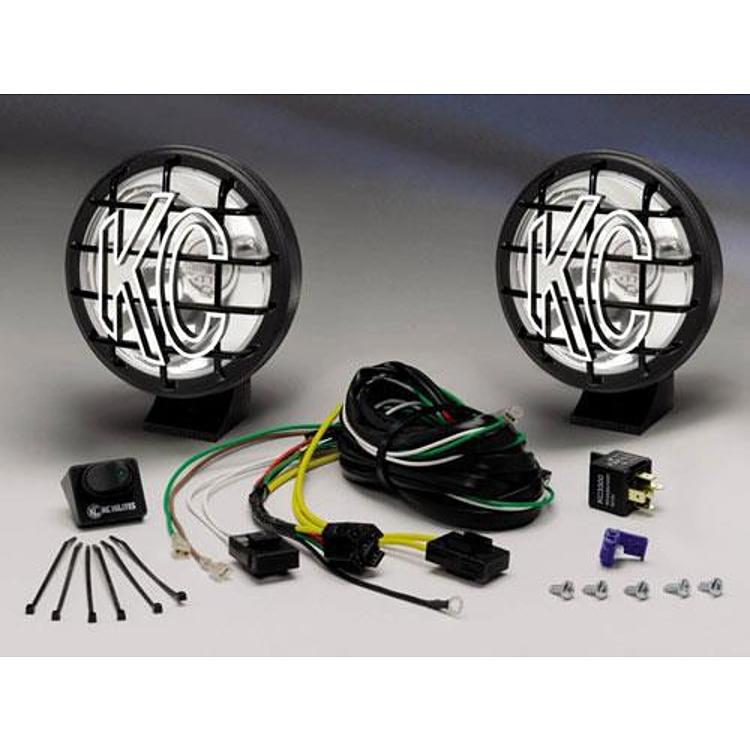

Two 5 inch round Apollo Pro Series lights with replaceable 55 watt halogen bulbs, a wiring harness and bracket hardware.
