KC HiLites 3 Inch C-Series C3 LED System – 330

KC HiLites

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal fit: a 3 inch C-Series C3 LED system with clear lens and spot beam
  • 12 W CREE LED per light, 1,080 raw lumens
  • 12 degree spot optics
  • Die-cast aluminum housing and Lexan lens
  • Pair of lights, deluxe wiring harness and brackets included

Description

Overview

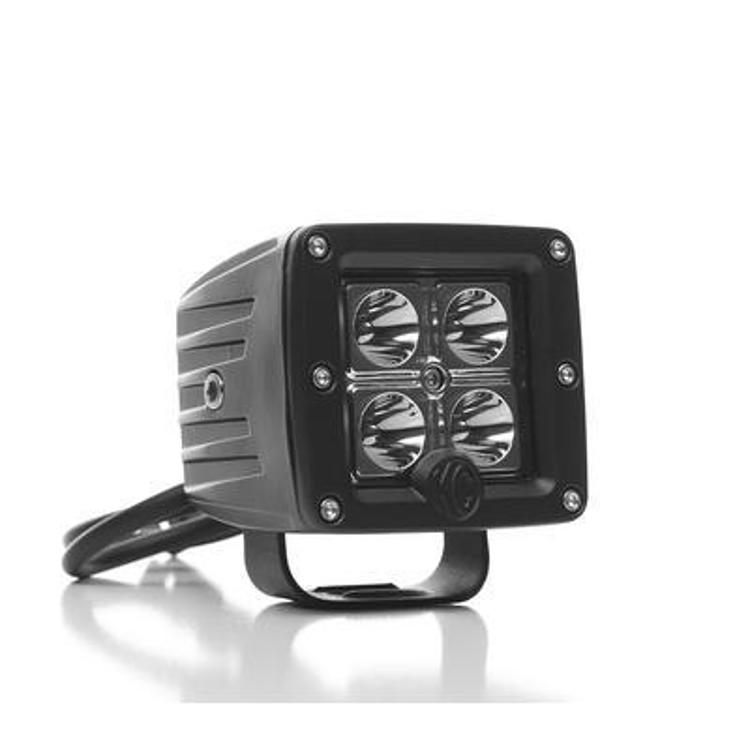

The KC HiLites 3 Inch C-Series C3 LED System, model 330, is a pair of 3 inch square 12 W LED spot lights with a clear lens, universal fit. Each light has a die-cast aluminum housing, a Lexan lens and CREE LEDs rated at 1,080 raw lumens. The system includes the die-cast brackets and deluxe wiring harness, so it is ready to mount.

Key features

  • 12 degree spot optics
  • 1,080 raw lumens per light
  • On-board thermal management
  • Impact resistant die-cast aluminum housing
  • Clear Lexan lens
  • Brackets, hardware and harness included

Clear lens for work lighting

A clear lens shows the LEDs’ natural white output and suits spot work where true color matters. It suits spot work where a focused beam is needed, and the beam pattern stays the same as an amber version, so the choice comes down to color and surroundings. Test the spot at dusk on the actual mounting position before fixing the brackets, since the hotspot can land higher than expected.

Spot beams reward careful aiming. Set the pair on level ground and point the hotspot down the trail ahead, where the track bends. Recheck the setting after rough runs, since bumps can knock brackets out of line.

Lexan lenses shrug off small stones, but they scratch more easily than glass. Clean them with mild soap and a soft cloth, and avoid dry wiping grit across the surface. Check seals after heavy rain or water crossings.

Specifications

Brand KC HiLites
Light series C-Series C3, 3 inch
Light shape Square
Lens color Clear
Bulb type LED, 12 W per light (CREE)
Raw lumens 1,080 lm per light
Beam pattern Spot, 12 degree optics
Housing Die-cast aluminum
Lens Lexan
Mounting Bracket kit with hardware
Included Pair of C3 lights, deluxe wiring harness, brackets

Vehicle fitment

It is a universal fit and is not built for one vehicle. Pick a mounting spot that suits your vehicle, and make sure the brackets clear the body and wiring.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The system is supplied with brackets, hardware and a harness, so no custom parts are needed. Run the harness through a fused relay, and check local rules on auxiliary lights before using them on public roads.

What’s included

A pair of 3 inch C3 LED lights with clear lenses, a deluxe wiring harness and die-cast mounting brackets with hardware.

SKU: K/C330 Category:

Specification

Shipping weight 3.50 lbs
Package dimensions 7.50 × 7.30 × 7.00 in
brands

Questions & Answers

Does the C3 system 330 fit my vehicle?

It is a universal fit, so no specific vehicle is named. Confirm the bracket placement and that the brackets clear the body and wiring before you order.

Is the wiring included?

Yes. A deluxe wiring harness comes with the pair of lights, along with die-cast mounting brackets and their hardware, so no separate wiring kit is needed.

What is the beam pattern?

It is a spot beam with 12 degree optics and 1,080 raw lumens per light. The lens is clear, while the 315 version of the same system uses an amber lens.

What is the lens material?

The lens is a durable Lexan lens, and the housing is impact resistant die-cast aluminum, built to hold up to off-road use in the same way as the other C3 versions.

How often should the harness and seals be inspected?

Inspect the harness plugs and lens seal at the start of each season and after water crossings. Look for corrosion, cracked insulation or fogging inside the lens, since any of these can cause intermittent output.

Can a clear lens be swapped for an amber one?

Only if the replacement lens is designed for the same housing. Swapping lenses changes the color but not the pattern, so keep the seal clean and in place when you fit it.
