Overview
The KC HiLites 6 Inch Apollo Pro Series Long Range Light Kit, part number 9150, is a pair of slim, 6-inch round lights with a long range pencil beam. The Apollo housings are black Polymax with a flat profile, and each light has a built-in stone guard on its bezel.
The Apollo optics use an optical-quality glass lens with polished reflectors. The lights use replaceable halogen bulbs rated at 100 watts, which combine to produce a focused beam. The two-axis mount allows aiming each light, and the kit includes a relay wiring harness.
Key features
- Long range pencil beam
- 6-inch round black Polymax housing
- Built-in stone guard and bezel
- Optical-quality glass lens and polished reflectors
- Replaceable 100 W halogen bulbs
- Relay wiring harness included
Halogen power and heat
Halogen bulbs run hotter and draw more current than LED lights, so the wiring and mounting need more care. A relay keeps the switch from carrying the full load, and a fuse at the battery protects the harness if a cable chafes. Keep the cables away from exhaust parts and sharp edges.
Halogen bulbs are replaceable, and the glass and filament are fragile. Handle the bulb by its base rather than the glass, since skin oil can shorten its life. Replace both bulbs of a pair together so the beams match in color and brightness.
Stone guards help protect the lens, but gravel and branches still reach the bezel. Inspect the seal and lens after rough trips, and wipe mud off the glass before use.
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 9150 |
| UPC | 84709091507 |
| Series | Apollo Pro |
| Light type | Halogen driving light, sold as a pair |
| Light shape | Round, 6 inch |
| Beam pattern | Long range, pencil |
| Lens | Clear, optical-quality glass |
| Housing | Black Polymax |
| Bulb | Replaceable 100 W halogen |
| Mounting | Two-axis mount |
Vehicle fitment
It is a universal fit, so it is not built for one vehicle. The two-axis mount lets the owner aim each light, and placement depends on the bar or bumper the kit is fitted to.
Installation notes
Use the included relay wiring harness, and fuse the circuit at the battery because halogen bulbs draw more current than LEDs. Aim the lights with the two-axis mount, and check local rules on driving lights before using them on a road vehicle.
What’s included

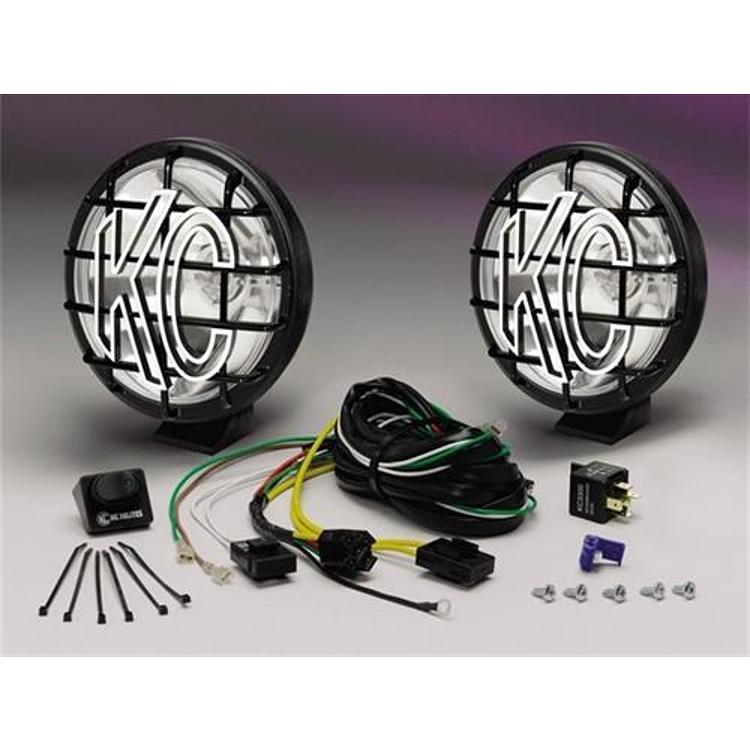

The kit includes a pair of 6-inch Long Range lights, their two-axis mounts, a built-in stone guard on each housing and a relay wiring harness.
