Overview

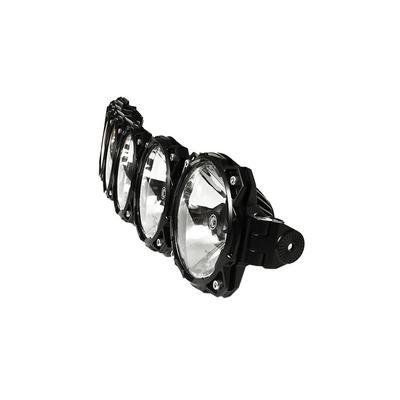

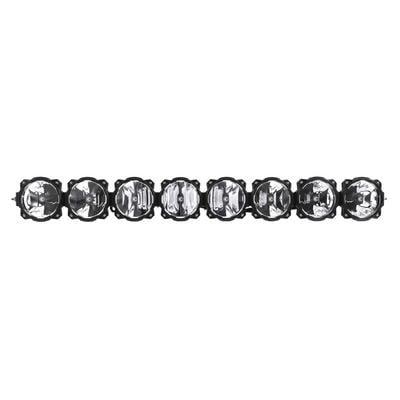

The KC HiLites Gravity LED Pro6 8-Light 50 Inch Radius Light Bar (part 91398) is a black single row bar with a combination beam pattern. It is an LED off-road lighting system built on a patent-pending Infinity Ring system, with a 7-light radius design for maximum light coverage. The bar is sold as a single unit with a clear lens.
The Pro6 uses patented Gravity LED G6 optical inserts for strong output and efficiency. The bar combines SAE and ECE Driving optics with Wide-40 G6 optics. The driving beam provides forward distance and an even beam distribution, while the Wide-40 beam covers a wider area and increases high speed cornering visibility. The bar fits most standard LED bar widths and has high-strength aluminum end mounts.
Key features
- Patent-pending Infinity Ring system
- Radius light bar design
- Patented Gravity LED G6 optical inserts
- SAE and ECE Driving optics
- Wide-40 G6 optics for wider coverage
- High-strength aluminum end mounts
- Fits most standard LED bar widths
Mounting a radius bar
A radius bar follows the curve of the roof or bumper, so the mount sets the final look and how stable the bar stays at speed. Before drilling, measure the roof rack width and the space needed for the wire route. Make sure the bar clears the windshield, roof hatch and any cargo carried on the rack.
Wind load and vibration are the main loads on a roof-mounted light. Tighten the end mount bolts to the torque in the vehicle or rack manual, and re-check them after the first few trail runs. Use dielectric grease on the connectors and route cable where it will not rub against the rack or body.
- Check the roof rack load rating before adding a light bar
- Route cable through a grommet, not over a sharp edge
- Keep the lens clean for full output
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 91398 |
| Light series | Gravity LED Pro6 |
| Size | 50 inch |
| LED row configuration | Single row |
| Beam pattern | Combo (SAE/ECE Driving and Wide-40 G6) |
| Finish | Black housing |
| Lens color | Clear |
| Mounting | Bracket with aluminum end mounts |
| Sold as | Single |
Vehicle fitment
This light bar is universal and is not built for one vehicle. The end mounts work with KC mounts on trucks and SUVs, and they are compatible with Toyota Tacoma and Chevy/GM Colorado and Canyon M-RACKS roof racks. Check the mount for your vehicle before ordering.
Installation notes
The bar mounts through its high-strength aluminum end mounts. Confirm the end mount matches your roof rack or bracket, and check local rules for auxiliary light bars on public roads before use.
What’s included
One 50 inch Gravity LED Pro6 light bar with its aluminum end mounts. Part 91398 is sold as a single unit.
