Overview

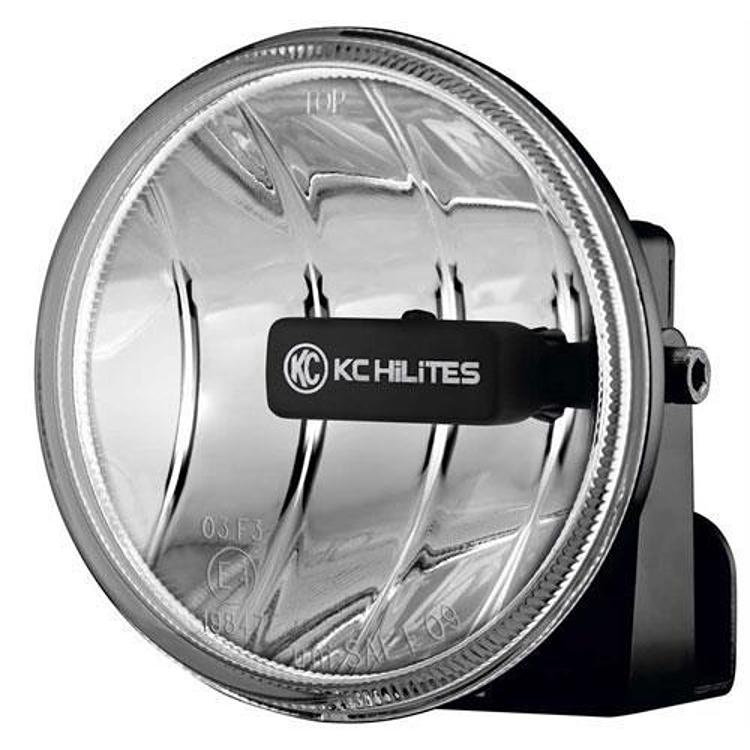

The KC HiLites 4 Inch Gravity LED Fog Light System, part number 493, is a pair of street legal 4-inch LED fog lights. The system meets SAE (US) and E-Mark/ECE (Europe) street legal specifications, and the pair draws 20W in total.
KC’s patented Gravity Reflective Diode technology is used to aim the LEDs through reflectors for a controlled beam. The kit is universal and uses an adjustable bracket, so it mounts on most vehicles, including Jeeps, trucks and SUVs.
Key features
- Patented Gravity Reflective Diode technology for a controlled, farther reaching beam
- Street legal under SAE (US) and E-Mark/ECE (Europe) specifications
- Lightweight, high grade magnesium housing with a clear glass lens
- IP68 rated and fully self contained, sealed LED housing
- Universal, adjustable bracket for mounting
- Sold as a pair
Aiming fog lights low
Fog lights do their best work when they throw a low, wide beam across the road surface. Aiming too high spreads light into fog and rain and makes glare worse for other drivers. After mounting, set the aim on a level surface, then adjust horizontally and vertically until the beam sits just above the road edge.
Mounting height and bumper shape both affect the result, so a light that looks right in the garage may aim differently once the vehicle is loaded or lifted. Check the aim after a suspension change, a bumper removal or a heavy trail trip. Clean the lens regularly, since road salt and mud can reduce output more than many drivers expect.
- Set aim on level ground
- Re-check aim after suspension work
- Clean the lens before each check
Specifications
| Brand | KC HiLites |
|---|---|
| Part number | 493 |
| UPC | 84709004934 |
| Size | 4-inch |
| Light type | LED |
| Power | 20W total for the pair |
| Lens | Clear glass |
| Housing | Lightweight, high grade magnesium |
| Rating | IP68 |
| Mounting | Universal, adjustable bracket |
| Sold as | Pair |
Vehicle fitment
Universal fit. The kit comes with a universal adjustable bracket, so it is not built for one vehicle. Check the bracket location and the aim on your vehicle before final mounting.
The lights are street legal under SAE and E-Mark/ECE, so they can be used on public roads where the local rules allow.
Installation notes

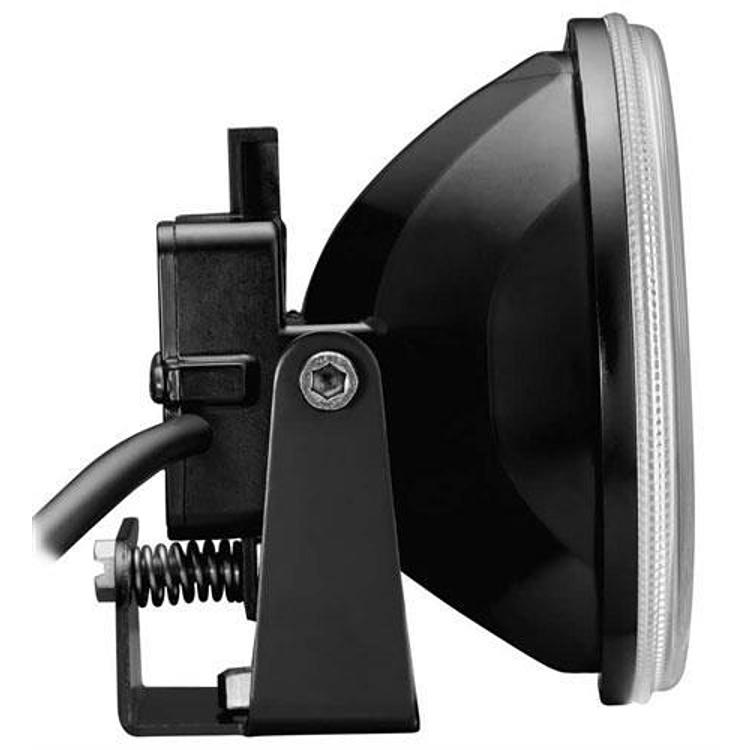

The bracket is adjustable, so the lights can be aimed horizontally and vertically after mounting. Use a fused relay and wiring for the 20W pair, and aim the lights low enough that they do not glare into oncoming traffic.
What’s included
A pair of 4-inch Gravity LED fog lights and a universal adjustable bracket for mounting.
