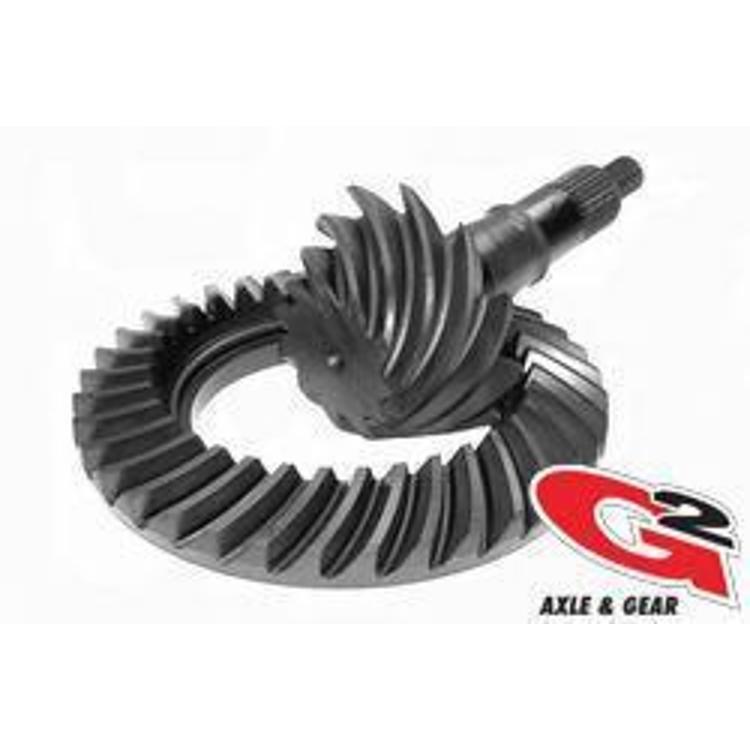

G2 Ford 8.8 Inch 5.13 Ratio Ring and Pinion – 2-2013-513

G2 Axle and Gear

Shop G2 Axle And Gear Ring And Pinions on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Ring and pinion set for the Ford 8.8 Inch rear axle
  • Gear ratio 5.13, part number 2-2013-513
  • Matched ring gear and pinion for a numerically higher ratio
  • Vehicle fitment not listed; match the axle first

Description

Overview

The G2 Axle and Gear 2-2013-513 is a 5.13 ratio ring and pinion for the rear Ford 8.8 Inch axle. A 5.13 setting means the pinion makes 5.13 turns per ring gear revolution, a numerically higher ratio that favors acceleration and low-speed pulling over highway cruising speed.

G2 markets its Performance Ring and Pinion sets for oversized tires and high-performance engines and says they use the latest materials and manufacturing methods. The set is listed by axle type. No vehicle models or years are named, so the 8.8 Inch housing on your vehicle decides fit.

Key features

  • 5.13 gear ratio for the Ford 8.8 Inch rear axle
  • Ring gear and pinion sold as a matched pair
  • Suited to oversized tires and high-performance engines.
  • Made with current materials and manufacturing methods.
  • Rear axle location

Highway speed and rpm

A 5.13 ratio raises engine speed at any given road speed compared with a lower ratio. The effect is most noticeable on the highway, where the engine turns faster and may feel busier. The same gear set helps the vehicle pull away, climb and tow, since more torque reaches the wheels at low speed. Choosing it means accepting some cruising efficiency in exchange for response.

Preparing for a swap includes more than the gears. Check the carrier bearings, pinion bearing preload and axle seals while the cover is off, and clean the housing thoroughly so debris does not end up in the new teeth. Tire diameter, transmission gearing and any added load all change how the set behaves, so consider them together before deciding how much the higher ratio is needed.

  • Clean the housing and carrier before assembly
  • Replace worn carrier bearings with the set
  • Plan a gentle break-in before towing
  • Recheck cover bolts after the first heat cycles

Specifications

Brand G2 Axle and Gear
Part number 2-2013-513
UPC 631410105360
Axle type Ford 8.8 Inches
Axle location Rear
Gear ratio 5.13
Axle manufacturer Ford

Vehicle fitment

The set is matched to the Ford 8.8 Inch rear axle, so verify that axle type and the carrier on your vehicle before ordering. Fit depends on the housing, not on a model name.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.13 gear set changes the engine’s rpm at highway speed, and the tooth contact has to be dialed in with the right tools. A gear shop is the usual installer, and the new set should be run in gently before towing or hard use.

What’s included

One 5.13 ring and pinion set (ring gear and drive pinion) for the Ford 8.8 Inch axle, part number 2-2013-513.

Not included: Bearings, shims and carrier hardware are sold separately and may need to be bought to match the carrier.

SKU: G/22-2013-513 Category:

Specification

Shipping weight 21.60 lbs
Package dimensions 12.00 × 11.00 × 6.00 in
brands

Questions & Answers

Will the G2 2-2013-513 work in a Ford 8.8 Inch rear axle?

Yes, it is made for the Ford 8.8 Inch rear axle. Confirm the housing type and carrier fit on your vehicle before you buy, since axle type decides fit.

What gear ratio is the 2-2013-513?

It is a 5.13 ratio. Each ring gear revolution takes 5.13 pinion turns, which is numerically higher than 4.10 and gives quicker acceleration at the cost of some cruising efficiency.

Does the set include bearings and shims?

No. Bearings, shims and installation hardware are sold separately, so check them against your carrier before installation and buy any that are missing.

Does a taller tire change how a 5.13 set feels?

Yes. Larger tires effectively lengthen the final drive, so the engine turns slower at a given speed, while smaller tires push rpm higher. Gear choice and tire diameter should be considered together before the set is installed.

Should the old gears be replaced at the same time?

It is usually a good time to check the pinion bearing, carrier and seals, since the axle is already open. Inspect the old ring gear teeth and bearing surfaces for wear and replace any parts that show it.
