Overview
The G2 Axle and Gear 6 on 5.5 bolt pattern wheel spacer, part number 93-83-150T, is a 1.5 inch thick black anodized aluminum spacer. It is designed to widen track width for wider wheels and tires and to add off-road stability, and it is sold in pairs.
Each spacer is CNC machined from T-6061 aluminum, with a center bore of 4.180. Measure your hub’s center bore before fitting, and confirm the unit matches your measurement.
Key features
- 6 on 5.5 bolt pattern
- 1.5 inch thickness
- Black anodized finish
- Pre-installed wheel studs and lug nuts
- Center bore of 4.180
Hub centering and seating
A spacer seats on the hub face and is positioned either by the center bore or by the studs, so the bore size matters as much as the bolt pattern. A bore that is too small will not slide on, while a bore that is too large can leave the wheel off-center and cause vibration. Measure the hub before ordering, and compare the measurement with the figure given for this spacer.
Thicker spacers also lengthen the exposed stud, which can reduce thread engagement with the lug nut. Clean the hub face and stud threads, then check that each lug nut seats fully. Recheck the lug nuts after the first few drives and inspect the studs for bending or thread damage.
- Measure the hub center bore before fitting
- Clean the hub face and stud threads
- Check lug nut seating after the first drive
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 93-83-150T |
| UPC | 631410118674 |
| Bolt pattern | 6 on 5.5 |
| Thickness | 1.5 inch |
| Material | T-6061 aluminum |
| Finish | Black anodized |
| Center bore | 4.180 (unit not stated) |
| Quantity | Sold as a pair |
Vehicle fitment
No vehicle is named for this spacer. Bolt pattern, hub and wheel clearance decide whether a given vehicle works.
Confirm your vehicle’s year, model and trim before ordering. Check the 6 on 5.5 bolt pattern and center bore against your hub.
Installation notes
Follow the included instructions, then recheck tire clearance at full steering lock.
What’s included

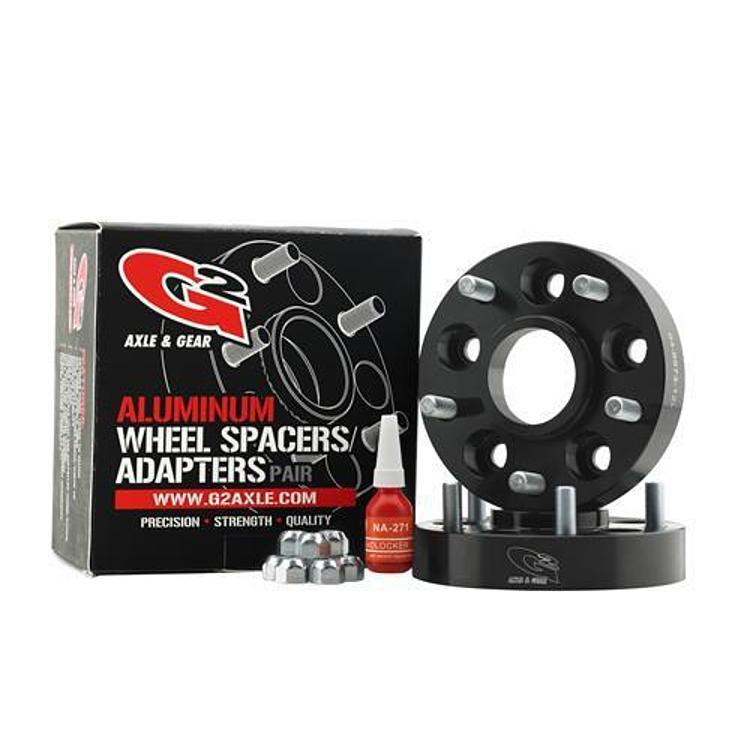

Two spacers with pre-installed wheel studs and lug nuts, plus thread locker compound.
