Overview

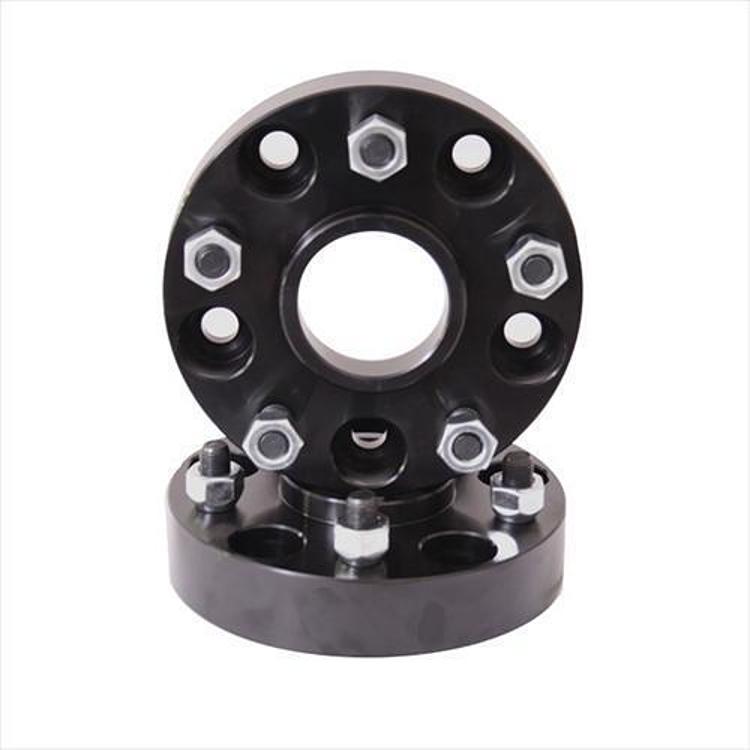

The Rugged Ridge 15201.05 is a black, hub centric 1.5 inch aluminum wheel spacer pair for wheels with a 5 on 5 inch bolt pattern. Hub centric spacers center on the hub, so the wheel is located by the hub rather than only by the lug studs.
Rugged Ridge describes these as double anodized 6061T6 aluminum for long life and extra corrosion resistance, with grade-8 hardware. Each part number comes as a spacer pair.
Key features
- Hub centric design
- 1.5 inch thickness
- 6061T6 aluminum, double anodized
- Grade-8 hardware
- Spacer pair with 10 pre-installed wheel studs and 10 lug nuts
Hub centric versus lug centric
Hub centric spacers locate the wheel on the hub’s center bore, which takes load off the lug studs and helps keep the wheel true. Lug centric wheels rely on the studs alone for centering, so a hub centric design can reduce vibration when the fit is correct. Check the hub bore against the spacer bore before mounting, since a mismatch will stop the spacer from seating.
Because the spacer is thicker than a flush mount, the wheel moves outward and changes how it clears the brake caliper and fender. Inspect the spacers, studs and hub face at tire rotations, looking for corrosion or cracks. Re-check the torque after the first drives, as the spacer can settle as the wheel seats.
- Confirm the hub bore matches the spacer bore
- Inspect the hub face at tire rotations
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15201.05 |
| UPC | 804314123390 |
| Thickness | 1.5 inch |
| Material | Aluminum 6061T6, double anodized |
| Color | Black |
| Bolt pattern | 5 on 5 inch |
| Centering | Hub centric |
| Hardware | Grade-8 |
| Fitment | Universal Fit |
Vehicle fitment
These spacers are marked universal fit and name no vehicle years, models or trims. Match the 5 on 5 inch bolt pattern and the hub centric design to your own wheels and hub.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
The set includes a spacer pair, ten pre-installed grade-8 wheel studs, ten lug nuts and a thread locker.
