Overview

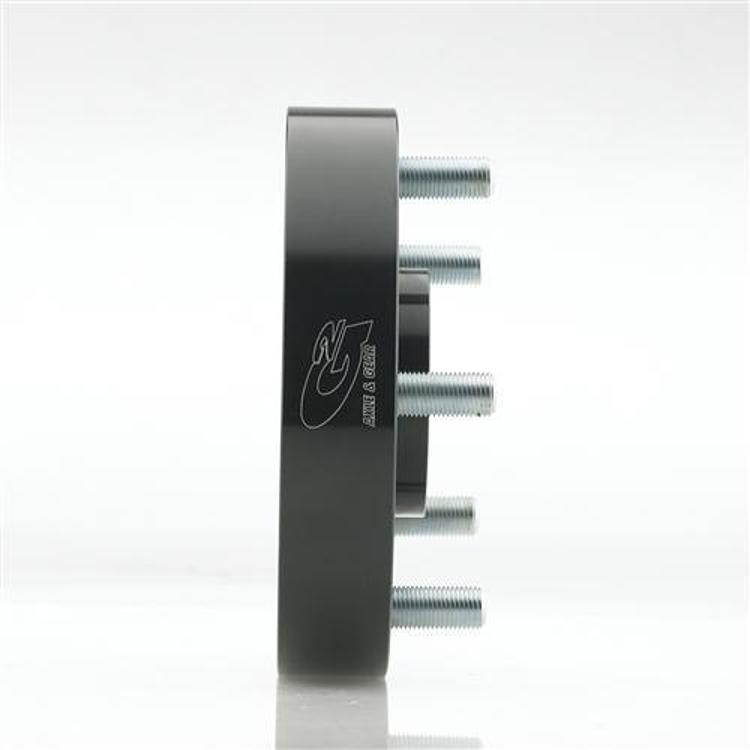

The G2 Axle and Gear 5 on 5.5 bolt pattern wheel spacer, part number 93-85-125, is a black anodized aluminum spacer for 5 on 5.5 hubs. Its thickness is 1.25 inch, so it widens track width for wider wheels and tires.
The spacers are sold in pairs. Each pair is CNC machined from T-6061 aluminum and comes with pre-installed wheel studs, lug nuts and thread locker compound.
Key features
- 5 on 5.5 bolt pattern
- 1.25 inch thickness
- Black anodized finish for corrosion resistance
- Pre-installed wheel studs, lug nuts and thread locker compound
- Sold in pairs
Clearance and track width
Adding a spacer moves the wheel outward, which changes scrub radius, steering feel and how the tire sits in the fender. Clearance can be lost at the inner edge of the tire when turning or when the suspension compresses, so check both steering lock and suspension travel after installation. Recheck the lug nuts after the first drive, since the studs are new to the hub.
Wheel spacers also load the wheel bearings and studs differently than a flush mount, so inspect the hub face for corrosion or debris before mounting. Keep the lug nuts clean and dry, and use a torque wrench set to the value for your vehicle’s wheel studs. Tire pressure and tread wear also change how much clearance you have, so recheck them along with the spacers.
- Check fender clearance at full steering lock
- Inspect the hub face before mounting
- Recheck lug nut tightness after the first drive
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 93-85-125 |
| UPC | 631410112252 |
| Bolt pattern | 5 on 5.5 |
| Thickness | 1.25 inch |
| Material | T-6061 aluminum |
| Finish | Black anodized |
| Type | Spacer |
| Included | Pre-installed wheel studs, lug nuts, thread locker compound |
| Quantity | Sold as a pair |
Vehicle fitment
No vehicle is named for this spacer, and it is labeled Universal Fit. Bolt pattern and clearance decide whether a given application works.
Confirm your vehicle’s year, model and trim before ordering. Check the 5 on 5.5 bolt pattern and wheel clearance first.
Installation notes
The kit comes with detailed instructions, so follow them when installing. Spacers move the wheel outward, so recheck tire clearance after the first drive.
What’s included

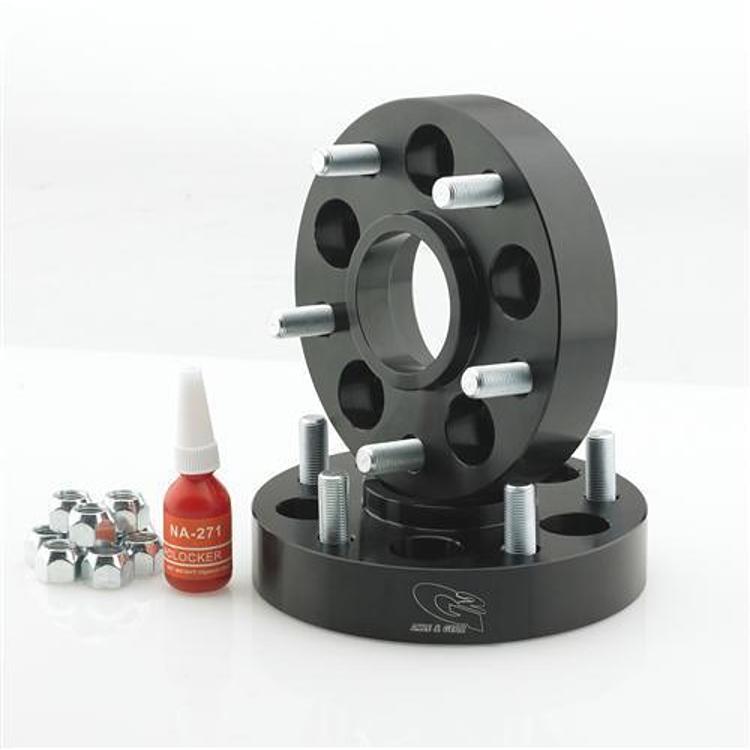

A pair of spacers with pre-installed wheel studs, lug nuts, thread locker compound and detailed instructions.
