Overview

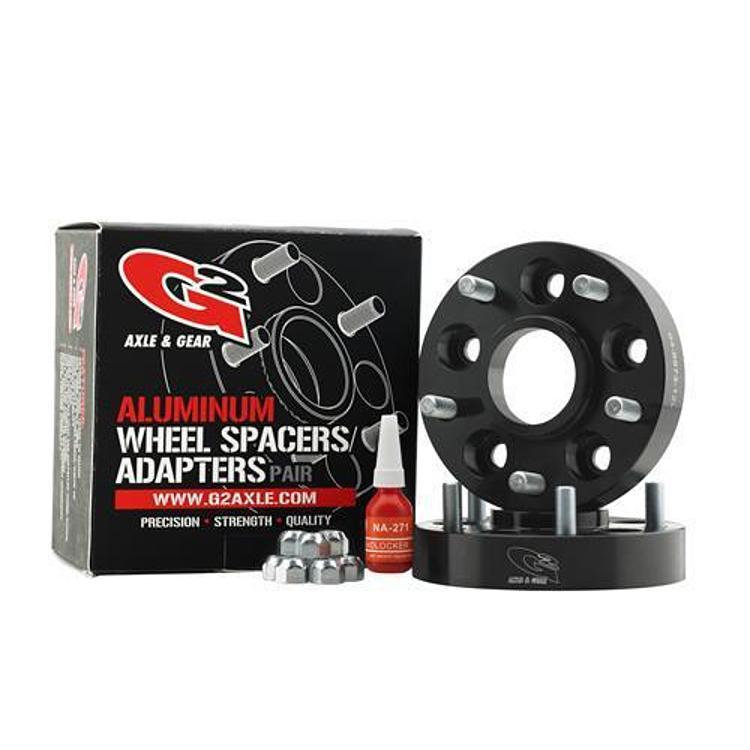

The G2 Axle and Gear 93-38-125 is a 6×5.5 wheel spacer for hubs with a 6 on 5.5 bolt pattern. It measures 1.25 inch thick and is made of aluminum with a black finish. A spacer of this type sits between the hub and the wheel and moves the wheel outward, which changes the offset and can add clearance for the tire.
The spacer is universal fit, so no particular vehicle is matched to it. Measure the hub first: the 5.5 in the pattern is the bolt circle diameter in inches, and a hub with a different lug count or circle will not accept this spacer. The 1.25 inch figure describes how far the wheel sits from the hub, not the pattern itself.
Key features
- 6×5.5 bolt pattern, written 6 on 5.5
- 1.25 inch thickness
- Aluminum body with black finish
- Spacer type, not an adapter
- Universal fit with no specific vehicle matched
Hub measurement basics
Before buying any wheel spacer, measure the hub itself rather than relying on a vehicle name. Count the lug holes, measure the bolt circle from the center of one stud to the center of the stud across from it where the lug count allows, and check the center bore of the hub. A hub face that is rusted, bent or uneven will affect how the spacer seats, so clean the face and check it with a straightedge. Measure the stud diameter and thread pitch as well, because the wrong nut or stud can strip or fail to seat. A caliper gives the most reliable reading, and it is worth measuring twice. When the measurements match, the remaining checks are the spacer’s thickness and the clearance it creates at the tire, wheel and suspension.
Specifications
| Brand | G2 Axle and Gear |
|---|---|
| Part number | 93-38-125 |
| UPC | 631410118889 |
| Type | Spacer |
| Bolt pattern | 6 on 5.5 (6×5.5) |
| Thickness | 1.25 inch |
| Material | Aluminum |
| Color | Black |
| Fitment | Universal fit |
Vehicle fitment
This spacer is not tied to a year, model or trim. Choose it by the hub’s bolt pattern, the 1.25 inch thickness and the clearance around the wheel. Comparing it with other thicknesses means looking at the change in clearance, not only the pattern.
Confirm your vehicle’s year, model and trim before ordering. A matching 6 on 5.5 pattern is only one check; the 1.25 inch thickness also has to clear the wheel, suspension and steering parts on your vehicle.
Installation notes
Hardware is not included with this spacer, so confirm that the studs and lug nuts you plan to use suit the 6 on 5.5 spacing before mounting. After installation, check clearance through full steering and suspension travel before regular driving.
What’s included
The spacer described above, part number 93-38-125, in black aluminum.
Not included: wheels and tires.
