Overview

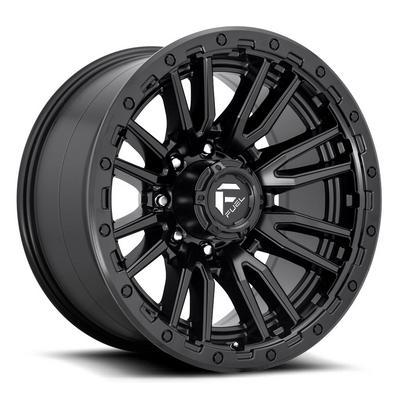

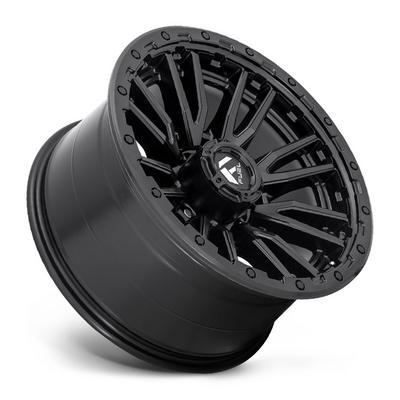

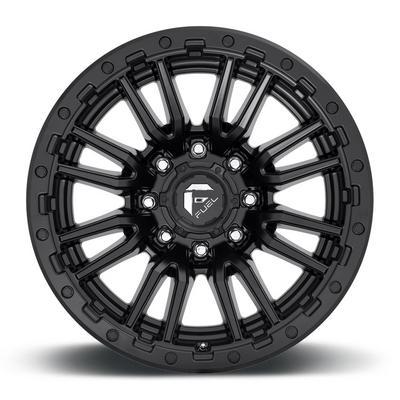

The FUEL Off-Road Rebel 8 D679 is a 22-inch by 12-inch aluminum split spoke wheel with an 8 on 170 bolt pattern and part number MHTD67922201747. Its finish is matte black. No vehicle is named for this wheel, so confirm the 8 on 170 pattern and 125 center bore against your hub first.
The -44 offset and 4.8 backspacing set how far the wheel sits outward and how much room remains inside it. Compare both figures with your current setup. The D679 model code is part of the 22×12 model designation.
Key features
- Split spoke design
- 22-inch diameter and 12-inch width
- 8 on 170 bolt pattern
- Matte black finish
- Center bore of 125
- Offset of -44 and backspacing of 4.8
- Aluminum construction
Matte black care and inspection
Matte finishes need gentler handling than gloss finishes. Shiny spots can appear where abrasive pads, polishes or waxes have been used, so stick with a pH-neutral wheel cleaner and a soft brush. Rinse thoroughly and dry the wheel with a microfiber towel to limit water spotting. Avoid high-pressure washing directly at the valve area and the bead seat.
Inspect the spokes and inner barrel after off-road use for stone chips, scrapes and bent lips. Small chips can be touched up with a matching matte product to slow corrosion on aluminum. A wheel with a large dent or crack should be replaced rather than repaired. Check the lug nuts after the first few drives, and look for cracks around the spoke roots during routine service.
Specifications
| Brand | FUEL Off-Road |
|---|---|
| Part number | MHTD67922201747 |
| Model | Rebel 8 D679 |
| Diameter | 22 inches |
| Width | 12 inches |
| Bolt pattern | 8 on 170 |
| Offset | -44 |
| Center bore | 125 |
| Backspacing | 4.8 |
| Style | Split spoke |
| Finish | Matte Black |
| Construction | Aluminum |
Vehicle fitment
Vehicle year, make, model and trim are not established for this wheel. Bolt count, center bore, offset and backspacing decide whether a hub accepts it, so compare those measurements with your vehicle before ordering.
The 8 on 170 pattern has to match the bolt count and spacing of your hub exactly, so confirm that first. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Dry-fit the 22×12 wheel on the hub with the 8 on 170 pattern and 125 center bore confirmed, then check clearance before final torque. The -44 offset and 4.8 backspacing require a fender, brake and suspension check at full steering lock. Select lug hardware to suit the wheel’s mounting face.
What’s included
The package covers one wheel, identified by its size, bolt pattern and finish.
Not included: Compare the delivered parts with your installation plan before starting. Tires, lug nuts and caps may need to be obtained separately.
