FUEL Off-Road D754 Reaction Wheel, 20x9 with 5 on 5.5/5 on 150 Bolt Pattern – Red / Milled – D75420907050

FUEL Off-Road

Shop FUEL Off-Road Wheels 20x9 5x5.5 on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Universal Fit, so the five-lug pattern and bore decide the match
  • 20 x 9 inch aluminum wheel, 5 on 5.5 and 5 on 150 patterns listed
  • Offset 1, center bore 110, backspacing 5.04
  • Red and milled finish, directional style, part MHTD75420907050

Description

Overview

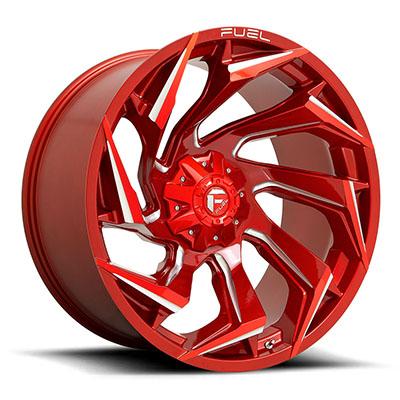

The FUEL Off-Road D754 Reaction is a 20×9 inch aluminum directional wheel, part number MHTD75420907050, in red and milled finish. It covers two five-lug patterns, 5 on 5.5 and 5 on 150.

It is a universal-fit wheel. A 110 center bore and an offset of 1 keep the mounting face close to the centerline. Backspacing of 5.04 sets the space from the mounting face to the inner barrel edge, which matters for brake and suspension clearance.

Key features

  • Two five-lug patterns listed: 5 on 5.5 and 5 on 150
  • Red and milled finish on aluminum construction
  • Directional style design
  • 20-inch diameter with a 9-inch width
  • Center bore 110, offset 1, backspacing 5.04

Five-lug hubs and centering

Five-lug hubs often rely on the center bore to locate the wheel, while the studs carry the clamping load. When the bore is larger than the hub, the wheel can sit slightly off center, which causes vibration that is easy to mistake for tire imbalance. Before buying, measure the hub diameter and compare it with the bore, then decide whether a centering solution is needed.

Choosing between the two five-lug patterns comes down to the hub you already have. Mixing patterns with adapters adds stress and another point of failure, so match the wheel to the hub directly. Inspect the studs for stretched threads or rust, and replace any that look damaged before fitting a new wheel. Tighten in a star pattern and retighten after a short drive.

Specifications

Brand FUEL Off-Road
Part number MHTD75420907050
Model D754 Reaction
Diameter 20 inches
Width 9 inches
Bolt pattern 5 on 5.5/5 on 150
Bolt pattern 2 5 on 150
Offset 1
Center bore 110
Backspacing 5.04
Style Directional
Finish Red/Milled
Construction Aluminum
Fitment Universal Fit

Vehicle fitment

The wheel is a universal-fit design and is not tied to a specific vehicle. Pick the five-lug pattern your hub uses, either 5 on 5.5 or 5 on 150, and confirm the 110 center bore. Confirm your vehicle’s year, model and trim before ordering.

Pick the pattern your hub uses, either 5 on 5.5 or 5 on 150, and confirm the 110 center bore. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Five studs are easy to misalign, so start each nut by hand and confirm the wheel sits flat against the hub. Check brake caliper clearance behind the spokes during a test fit.

What’s included

Tires are not included and must be mounted before the wheel is used.

Not included: tires, which must be mounted before the wheel is used.

SKU: MHTD75420907050 Categories: ,

Questions & Answers

Will this FUEL Off-Road D754 wheel fit my vehicle?

No vehicle is assigned, so fit depends on your hub. Match it to either the 5 on 5.5 or 5 on 150 pattern, then check the 110 center bore before buying.

Which bolt patterns does MHTD75420907050 use?

Two five-lug patterns are listed: 5 on 5.5/5 on 150, with 5 on 150 given as a second pattern. The wheel is 20x9 inches with offset 1 and backspacing 5.04.

Does this wheel come with lug nuts?

This item is the wheel itself. Confirm that you have lug nuts and center caps that suit the five-lug pattern before mounting.

Do I need hub-centric rings with this wheel?

Possibly. Hub-centric rings fill the gap between a wheel's center bore and the hub, so the load rests on the hub rather than the studs. Check whether your hub is larger than the 110 bore and fit rings only if the gap needs filling.
