Overview

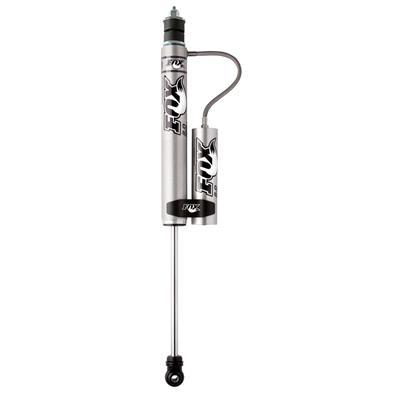

The FOX Performance Series 2.0 Reservoir Smooth Body Shock, part number FOX985-24-120, is a front shock with an external reservoir for the 2005–2016 Ford F-250 Super Duty and F-350 Super Duty. It is intended for stock-height to moderately lifted front ends, with a lift range of 0 to 1.5.
The aluminum body is clear anodized and metal-impacted, which helps it dissipate heat faster than a steel body. The external reservoir adds oil and nitrogen capacity, and the high flow damping piston is matched to valving for the application.
Its listed lift range of 0 to 1.5 means this shock is intended for a stock to lightly lifted front end. Check the lift on your truck before ordering, since a shock outside its listed range may not match the geometry of the front suspension.
Key features
- External reservoir adds oil and nitrogen capacity.
- Metal-impacted, clear anodized aluminum body.
- Black anodized reservoir clamp CNC machined from 6061-T6 aluminum.
- High flow damping piston with application-specific valving.
- Eyelet top and bottom mounts.
Front end and reservoir care
A front reservoir shock sits in a demanding spot. It controls the front axle over washboard, sets the feel of steering on rough roads, and works hard on a heavy truck. The external reservoir keeps extra oil and gas capacity outside the body, which helps the shock manage heat over long runs.
Front shocks should be inspected alongside steering components, ball joints and tie rod ends. Loose or worn parts can make a new shock feel wrong. When the reservoir is mounted, check that the hose or reservoir has room to move through full travel without touching the frame or tire. Keep the clamp snug and inspect it periodically.
- Check ball joints and tie rod ends with the shock
- Confirm the reservoir clears the frame at full travel
- Keep the clamp tight and free of corrosion
- Clean the aluminum body after off-road use
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-120 |
| Position | Front |
| Lift range | 0 to 1.5 |
| Body material | Clear anodized aluminum |
| Reservoir clamp | Black anodized 6061-T6 aluminum |
| Charge | Gas charged |
Vehicle fitment
Fits the 2005–2016 Ford F-250 Super Duty and 2005–2016 Ford F-350 Super Duty across their trim levels. Ford F-150 and later Super Duty years do not fit.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
One front shock with its reservoir and the black anodized reservoir clamp.
