Overview

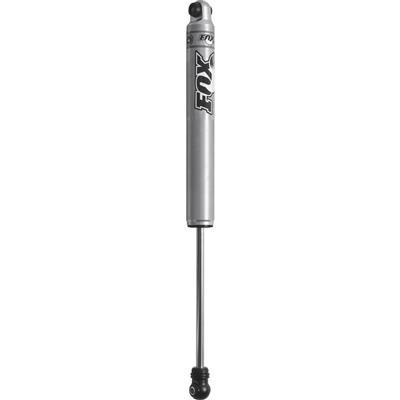

The FOX985-24-168 is a front 2.0 Performance Series smooth body IFP shock for the 2014 to 2026 Ram 2500 and Ram 3500. It fits Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman trims on the 2500, and the same trims except Outdoorsman and Power Wagon on the 3500.
The Performance Series 2.0 IFP smooth body design is built for a comfortable on-road ride and predictable off-road handling. The aluminum body increases cooling capacity and resists rust.
The Internal Floating Piston separates the shock oil from the high-pressure, nitrogen-charged gas chamber. That separation prevents oil aeration, so the high flow damping piston and application-specific valving work as designed.
Key features
- Front position
- Smooth body.
- 2.0 inch body diameter
- Stem top upper mount and eyelet lower mount
- Internal Floating Piston with nitrogen gas chamber
- High flow damping piston with application specific valving.
Heavy-duty front shocks
Heavy-duty Ram trucks put more load on the front shocks, especially with a loaded bed, a trailer hitch or off-road gear on the front bumper. Front shocks in this class manage that weight over bumps and during braking, so the valving and the gas charge both matter for a controlled ride. A shock that has lost damping will let the front end pitch and wander at highway speed.
Because the front axle steers the truck, shock condition and alignment are closely linked. Replacing a front shock with worn upper mounts or bump stops can leave the new shock working against slack parts. Inspect the upper mounts and bump stops at the same time, and have the alignment checked once the new shock is in place.
- Check upper mounts for cracks or looseness
- Inspect bump stops for compression damage
- Look for oil on the shock body
- Have the front alignment checked after installation
Specifications
| Brand | FOX |
|---|---|
| Part number | FOX985-24-168 |
| Series | 2.0 Performance Series |
| Position | Front |
| Shock type | Monotube |
| Body | Smooth aluminum body. |
| Body diameter | 2.0 inches |
| Top mount | Stem top |
| Bottom mount | Eyelet |
| Charge | Gas charged |
| Design | IFP, nitrogen gas chamber |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2014 to 2026 Ram 2500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, Outdoorsman, Power Wagon, SLT and Tradesman models, and the 2014 to 2026 Ram 3500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Limited, Limited Longhorn, Lone Star, SLT and Tradesman models.
The list covers Ram 2500 and 3500 models from 2014 to 2026 only, so 1500 models are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Compare the stem top and eyelet mounts with the original front shock before fitting, and have the front alignment checked afterward. Work on a securely supported vehicle.
What’s included
One front smooth body shock.
