Overview

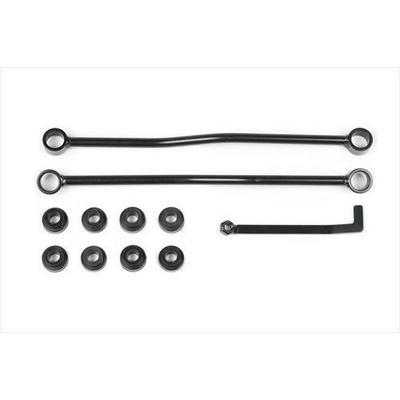

The Fabtech FTS22276 is a pair of non-adjustable extended rear sway bar links for Ford F-250 and F-350 Super Duty trucks with Fabtech 6-inch and 8-inch lifts. They are used with the factory rear sway bar and are built to reach its mounting points on a lifted truck.
On a lifted truck, standard rear sway bar links can be too short, and extended links reach the factory bar at its mounting points. Fabtech says its suspension designs come from more than 20 years of aftermarket engineering, backed by in-house software, fabrication and testing.
Key features
- Pair of extended rear sway bar links
- Non-adjustable link design
- Used with the factory rear sway bar
- Designed for trucks with Fabtech 6-inch and 8-inch lifts.
Choosing a rear sway bar setup
The rear sway bar links connect the axle to the factory bar and control how the bar moves as the axle travels up and down. On a lifted truck, the link angle changes, so links that were correct at stock height may bind or load the bar differently. Extended links keep the geometry closer to the design the bar expects.
When fitting new links, check that the bar and axle move freely through full droop and compression. Look for clearance at the brake lines and driveshaft, and confirm the bar mounts are tight. Because lift height changes link angle, a new lift often means a link check at the same time.
- Check link ends for torn boots and play
- Confirm bar bushings are not cracked or flattened
- Inspect the axle mounting points after the first trail run
- Keep the rear brake lines clear of the links
Specifications
| Brand | Fabtech |
|---|---|
| Part number | FTS22276 |
| Position | Rear |
| Quantity | Pair |
| Adjustment | Non-adjustable |
| Lift compatibility | Fabtech 6-inch and 8-inch lifts |
Vehicle fitment
Fabtech lists these links for the 2020–2021 Ford F-250 Super Duty and the 2020–2021 Ford F-350 Super Duty.
It fits the 2020–2021 Ford F-250 Super Duty and the 2020–2021 Ford F-350 Super Duty. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
The links are meant for a truck that already has a Fabtech 6-inch or 8-inch lift. Confirm the lift height before ordering, and inspect the new links and their fasteners once the job is done.
What’s included
The kit is sold as a pair of extended rear links. The factory rear sway bar is not included.
