Fabtech 2.5 Inch Coil Spacer Lift Kit – K3056

Fabtech

Shop Ram 3500 Coil Spring Spacers on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 2.5 inch front coil spacer lift kit for the 2013-2016 Ram 3500
  • Replaces front shocks with longer units
  • Extended bump stops included
  • Fits 315/70R17, 325/65R18 and 325/60R20 tires with minor trimming

Description

Overview

The Fabtech 2.5 Inch Coil Spacer Lift Kit, part number K3056, is a 2.5 inch front coil spacer lift system for the 2013-2016 Ram 3500 with radius arm front suspension. It covers the Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, ST and Tradesman trims.

The angled spacers keep the large bow that Dodge built into the front coil springs, which preserves the factory ride characteristics. The front shocks are replaced with longer units for full suspension travel, and extended length bump stops prevent coil spring binding at full compression and clear the track bar.

Fabtech lists tire and wheel combinations that fit with minor trimming: 315/70R17 tires with 17×9 wheels, 325/65R18 tires with 18×9 wheels, and 325/60R20 tires with 20×9.5 wheels.

Key features

  • 2.5 inch front lift using coil spacers
  • Angled spacers preserve the factory coil spring bow
  • Longer length front shocks
  • Extended length bump stops included
  • Eliminates track bar interference
  • Front position
  • Direct fit for the Ram 3500

Setting up after a lift

A coil spacer lift changes the ride height without changing the springs’ rate, so the truck will still feel different on the road. Heavier loads and long highway runs show the change most, and steering response may feel lighter until the alignment is set. Plan the install around a day when you can complete the work and road-test the truck afterwards.

Check the driveline angles and brake hoses once the lift is complete, since changed geometry can stretch hoses and push the driveshaft too far. Re-tighten suspension hardware after the first drive, and look at the bump stops and shocks after rough roads. Replace worn tie rod ends, ball joints or track bar bushings while the front end is apart, because they are often replaced in the same job.

Specifications

Brand Fabtech
Part number K3056
Product type Coil spacer lift kit
Lift height 2.5 Inches
Type Front
Included Angled coil spacers, longer front shocks, extended length bump stops
Tire and wheel fit 315/70R17 with 17×9 wheels; 325/65R18 with 18×9 wheels; 325/60R20 with 20×9.5 wheels, with minor trimming
Fit type Direct fit

Vehicle fitment

It fits the 2013-2016 Ram 3500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, ST and Tradesman trims, with radius arm front suspension.

Fit is for the 2013-2016 Ram 3500 only. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Coil spacers raise the body and shift how the suspension works, so a professional install helps keep steering predictable. Use rated stands on level ground.

  • Follow the torque values in the instructions and revisit the hardware after a short drive.
  • Have the alignment checked once the spacers are installed.
  • Confirm clearance for brake lines, steering and the driveshaft, as well as for the tires at the fenders.
  • Check local rules on vehicle height.

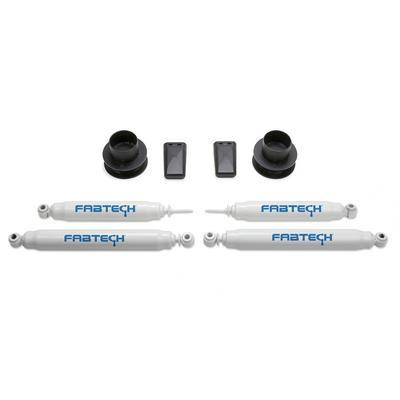

What’s included

  • Angled coil spacers
  • Longer front shocks
  • Extended length bump stops

Fitment

VehicleYearsTrims
Ram 35002013–2016Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, ST, Tradesman

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What trucks does the Fabtech K3056 fit?

It fits the 2013-2016 Ram 3500 in Big Horn, Laramie, Laramie Limited, Laramie Longhorn, Lone Star, SLT, ST and Tradesman trims with radius arm front suspension.

How much lift does the K3056 give?

The K3056 gives a 2.5 inch lift at the front through angled coil spacers. It also replaces the front shocks with longer units and adds extended length bump stops.

Does the K3056 include shocks?

Yes. The front shocks are replaced with longer length units, and extended length bump stops are included. Together they support full suspension travel and prevent coil spring binding.

What tire sizes does the K3056 allow?

The K3056 allows 315/70R17 tires with 17x9 wheels, 325/65R18 tires with 18x9 wheels, and 325/60R20 tires with 20x9.5 wheels, each with minor trimming.

Should I replace the track bar when installing a coil spacer lift?

Inspect it first. Worn bushings or ends can loosen the steering after a lift, and replacing them while the front end is apart is a common approach. The extended bump stops in this kit are designed to clear the track bar.
